Hogar / Productos / Caja de cambios oscilante / PC200-7 maquinaria de swing 706-7G-01040 20y-26-00240 20Y-26-00211 PC200-7 Caja de cambios de swing para excavador de komatsu

PC200-7 maquinaria de swing 706-7G-01040 20y-26-00240 20Y-26-00211 PC200-7 Caja de cambios de swing para excavador de komatsu

Compartir con:

PC200-7 maquinaria de swing 706-7G-01040 20y-26-00240 20Y-26-00211 PC200-7 Caja de cambios de swing para excavador de komatsu

Estado de Disponibilidad:

Cantidad:



Preguntar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	PC200-7 Swing Gearbox
Equipo	Aplicar a la excavadora de Komatsu
Parte no.	706-7G-01040 20Y-26-00240 20Y-26-00211
No.1 dientes de spline de engranaje solar	18 splines
Dientes del eje del piñón oscilante	13 T
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

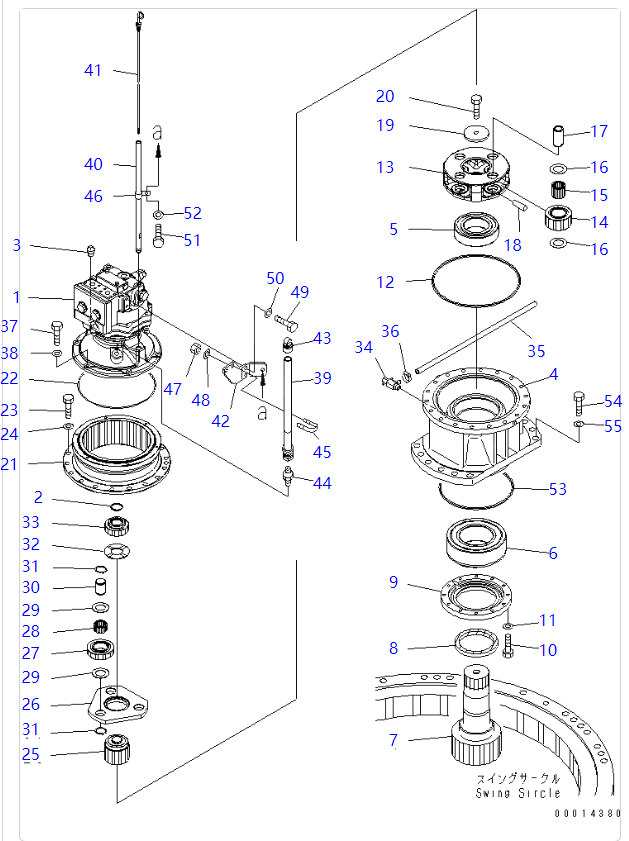

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
1.	706-7G-01040	[1]	Motor Ass'y Komatsu	57.5 kg.
			[ 'Sn: 255706-258353 '] Análogos: [ '7067G03040 ', '7067G01130 ', '7067G03041 ', '7067G01041 ']]
2.	22U-26-21280	[1]	Anillo komatsu	0.001 kg.
			[ 'SN: 255706-@'] Análogos: [ '20y2622270 ']
3.	07042-00312	[1]	Enchufe komatsu	0.031 kg.
			[ 'SN: 255706-@'] Análogos: [ '0704210312 ']
4.	20y-26-31110	[1]	Caso Komatsu	75.5 kg.
			[ 'Sn: 255706-@']
5.	20y-09-31130	[1]	Komatsu con Komatsu	6.25 kg.
			[ 'Sn: 255706-@']
6.	20y-09-31140	[1]	Komatsu con Komatsu	10.35 kg.
			[ 'Sn: 255706-@']
7.	20y-26-21142	[1]	Eje komatsu oem	35 kg.
			[ 'Sn: 255706-@'] Análogos: [ '20y2621140 ', '20y2621141 ']
8.	20y-09-31120	[1]	Sellar komatsu	0.2 kg.
			[ 'Sn: 255706-@']
9.	20y-26-22191	[1]	Cubrir komatsu	4.6 kg.
			[ 'Sn: 255706-@'] Análogos: [ '20y2622190 ']
10.	01010-81045	[12]	Perno komatsu	0.039 kg.
			[ 'SN: 255706-@'] Análogos: [ '0101051045 ', '01010d1045 ']
11.	01643-31032	[12]	Lavadora komatsu	0.054 kg.
			[ 'SN: 255706-@'] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '01643331022 ', '0164321032 ', '0164301010101010 '6127212530 ', '802170002 ', 'R01643331032 ']
12.	07000-55310	[1]	Junta tórica Komatsu China	0.033 kg.
			[ 'SN: 255706-@'] Análogos: [ '0700045310 ']
13.	22U-26-21580	[1]	Transportista komatsu	8.7 kg.
			[ 'Sn: 255706-@']
14.	22U-26-21540	[4]	Engranaje komatsu	2.46 kg.
			[ 'Sn: 255706-@']
15.	20G-26-11240	[4]	Con Komatsu China	0.24 kg.
			[ 'SN: 255706-@'] Análogos: [ '20G2611241 ', '20G2611410 ']
16.	20y-27-21240	[8]	Lavadora Komatsu China	0.02 kg.
			[ 'Sn: 255706-@']
17.	20y-26-22250	[4]	Pin Komatsu China	0.52 kg.
			[ 'Sn: 255706-@']
18.	20y-27-21280	[4]	Pin Komatsu China	0.01 kg.
			[ 'Sn: 255706-@']
19.	20y-26-21240	[1]	Placa Komatsu	5.1 kg.
			[ 'Sn: 255706-@']
20.	112-32-11211	[1]	Perno komatsu	0.09 kg.
			[ 'Sn: 255706-@']
21.	22U-26-21551	[1]	Engranaje komatsu	25.41 kg.
			[ 'SN: 255706-@'] Análogos: [ '22U2621551K2 ', '22U2621550 ', 'R22U2621551 ']
22.	20y-09-31110	[1]	Junta tórica Komatsu	0.01 kg.
			[ 'Sn: 255706-@']
23.	01010-81440	[18]	Perno komatsu	0.073 kg.
			[ 'Sn: 255706-@'] Análogos: [ '0101061440 ', '0101031440 ', '0101051440 ', '0104031440 ']]
24.	01643-31445	[18]	Lavadora komatsu	0.019 kg.
			[ 'SN: 255706-@'] Análogos: [ '0164301432 ']
25.	22U-26-21530	[1]	Engranaje komatsu	5.8 kg.
			[ 'Sn: 255706-@']
26.	22U-26-21572	[1]	Transportista komatsu	2.96 kg.
			[ 'SN: 255706-@'] Análogos: [ '22U2621570 ']
27.	22U-26-21520	[3]	Engranaje komatsu	1.54 kg.
			[ 'Sn: 255706-@']
28.	20y-26-21280	[3]	Komatsu con Komatsu	0.1 kg.
			[ 'Sn: 255706-@'] Análogos: [ '20y2621281 ', '20x2621240 ', '20y2621510 ']
29.	22U-26-21230	[6]	Lavadora komatsu	1 kg.
			[ 'Sn: 255706-@']
30.	22U-26-21210	[3]	Pin Komatsu	0.81 kg.
			[ 'Sn: 255706-@']
31.	04064-03515	[6]	Anillo komatsu	0.005 kg.
			[ 'Sn: 255706-@']
32.	22U-26-21250	[1]	Lavadora komatsu	1 kg.
			[ 'Sn: 255706-@']
33.	22U-26-21510	[1]	Engranaje komatsu	1.56 kg.
			[ 'Sn: 255706-@']
34.	195-03-13241	[1]	Válvula komatsu	0.9 kg.
			[ 'Sn: 255706-@']
35.	07270-31560	[1]	Tubo Komatsu China
			[ 'Sn: 255706-@']
36.	07281-00197	[1]	Clamp komatsu	0.015 kg.
			[ 'SN: 255706-@'] Análogos: [ '1950313250 ']
37.	01010-81035	[6]	Perno komatsu	0.033 kg.
			[ 'SN: 255706-@'] Análogos: [ '801015556 ', '01010d1035 ', '0101051035 ']
38.	01643-51032	[6]	Lavadora komatsu	0.17 kg.
			[ 'SN: 255706-@'] Análogos: [ 'R0164351032 ']
39.	20y-26-31411	[1]	Tubo Komatsu China
			[ 'Sn: 255706-@']
40.	20y-26-31421	[1]	Relleno Komatsu China
			[ 'Sn: 255706-@']
41.	20y-26-31431	[1]	Calibre Komatsu	0.07 kg.
			[ 'Sn: 255706-@']
42.	20y-26-31441	[1]	Soporte komatsu	0.88 kg.
			[ 'Sn: 255706-@']
43.	22U-26-21460	[1]	Cap Komatsu	0.06 kg.
			[ 'SN: 255706-258353 '] Análogos: [ '22U2621920 ']
44.	07238-10630	[1]	Conector komatsu	0.24 kg.
			[ 'Sn: 255706-@']
45.	07283-32738	[1]	Clip komatsu	0.084 kg.
			[ 'Sn: 255706-@']
46.	04434-51710	[1]	Clip komatsu	0.02 kg.
			[ 'Sn: 255706-@']
47.	01597-01009	[2]	Nuez komatsu	0.011 kg.
			[ 'Sn: 255706-@']
49.	01010-81030	[2]	Bolt Komatsu OEM	0.03 kg.
			[ 'SN: 255706-@'] Análogos: [ '801015110 ', 'M0 18011000306 ', 'YM26116100302 ', '0101051030 ']
51.	01010-81025	[1]	Perno komatsu	0.36 kg.
			[ 'SN: 255706-@'] Análogos: [ '0101051025 ', '0101651025 ', '801015109 ']
53.	07000-55240	[1]	Junta tórica Komatsu China	0.026 kg.
			[ 'SN: 255706-@'] Análogos: [ '0700045240 ']
54.	01010-82060	[12]	Bolt Komatsu China	0.2 kg.
			[ 'SN: 255706-@'] Análogos: [ '0101062060 ', '010105052060 ', '0101032060 ']
55.	01643-32060	[12]	Lavadora Komatsu China	0.044 kg.
			[ 'SN: 255706-@'] Análogos: [ '802170007 ', '0164322045 ', '0164302045 ']
