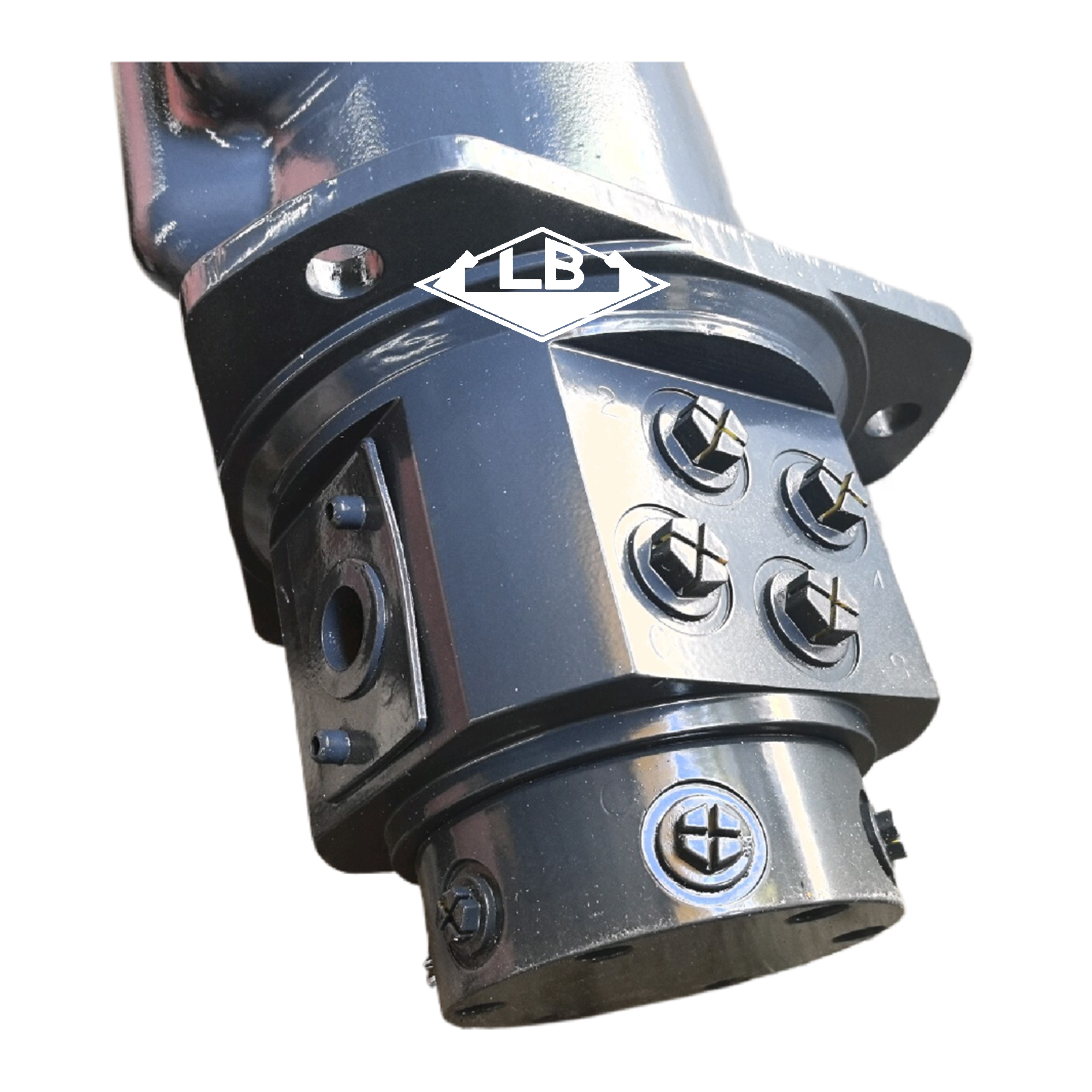

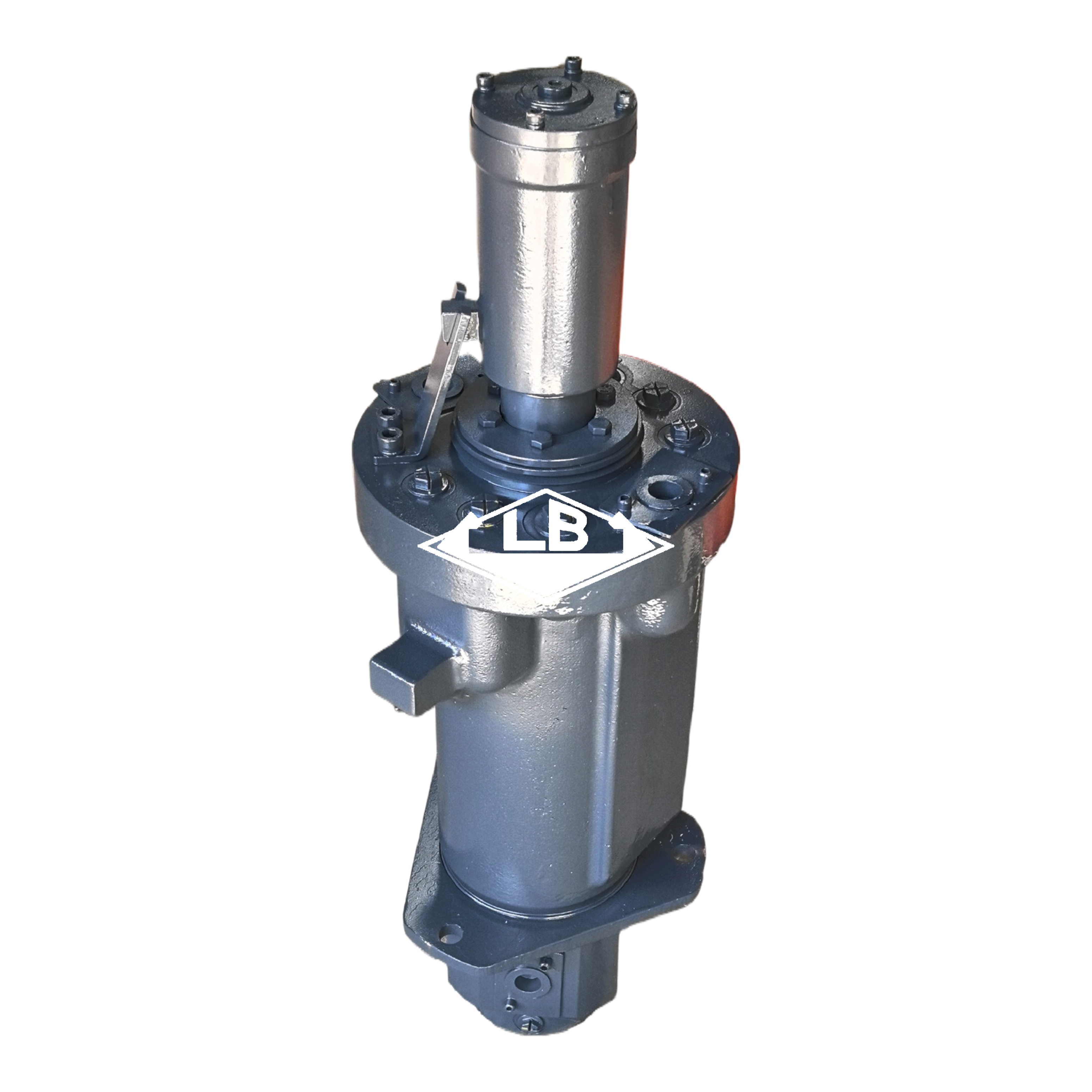

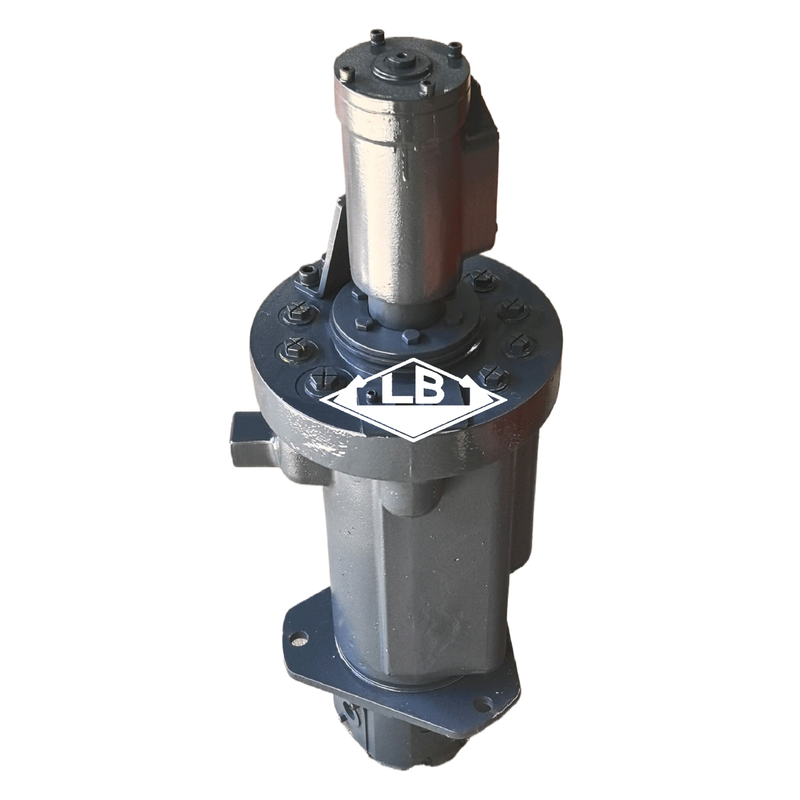

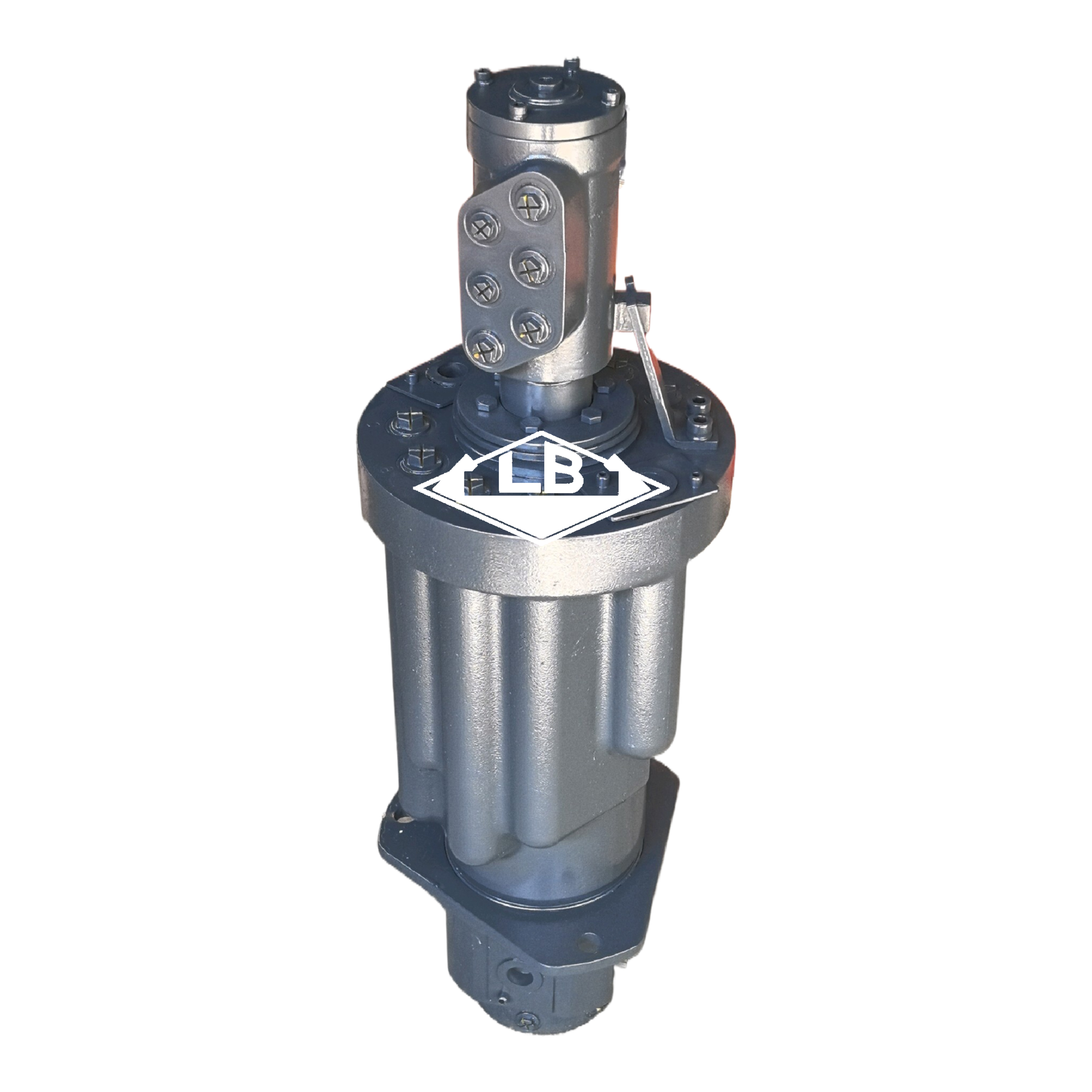

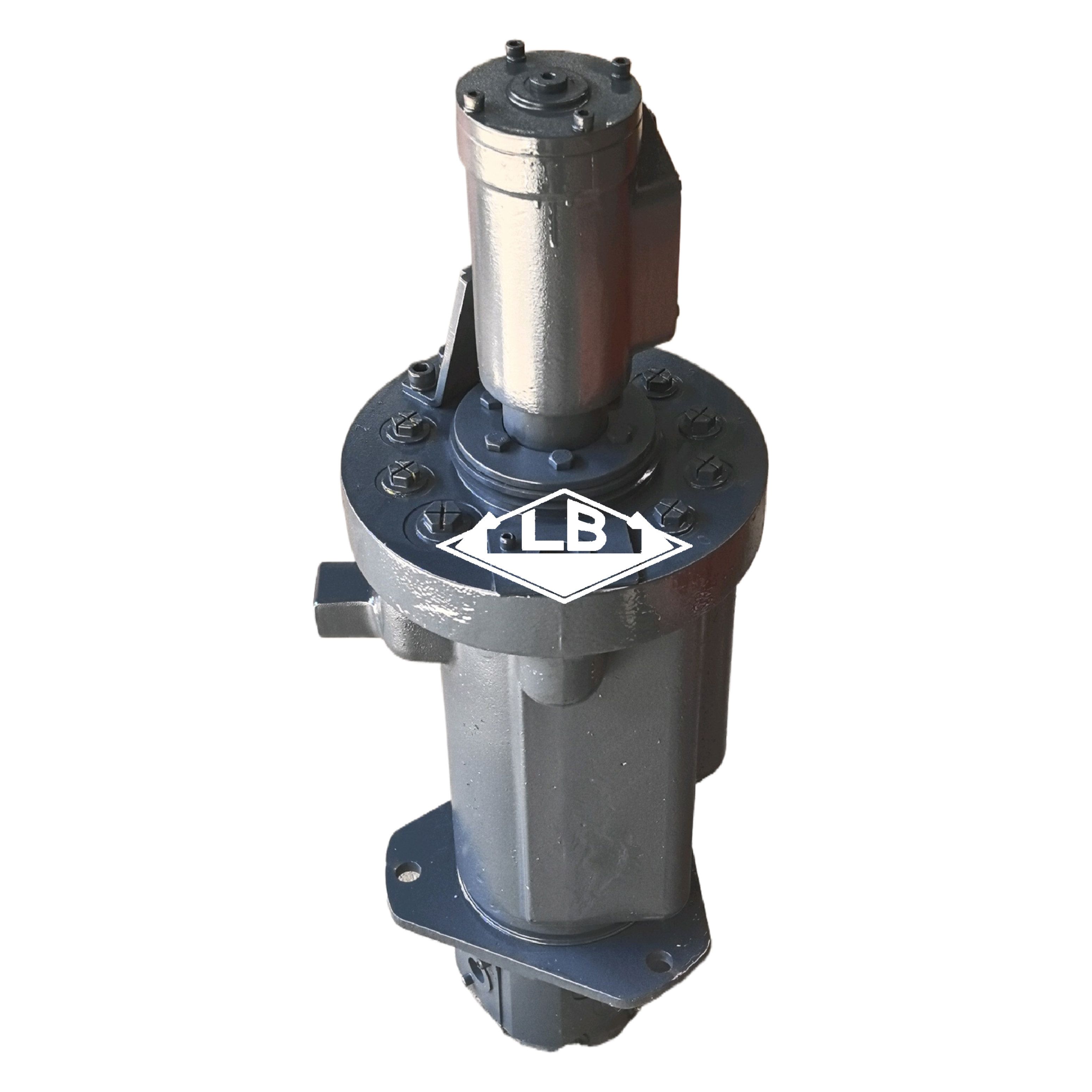

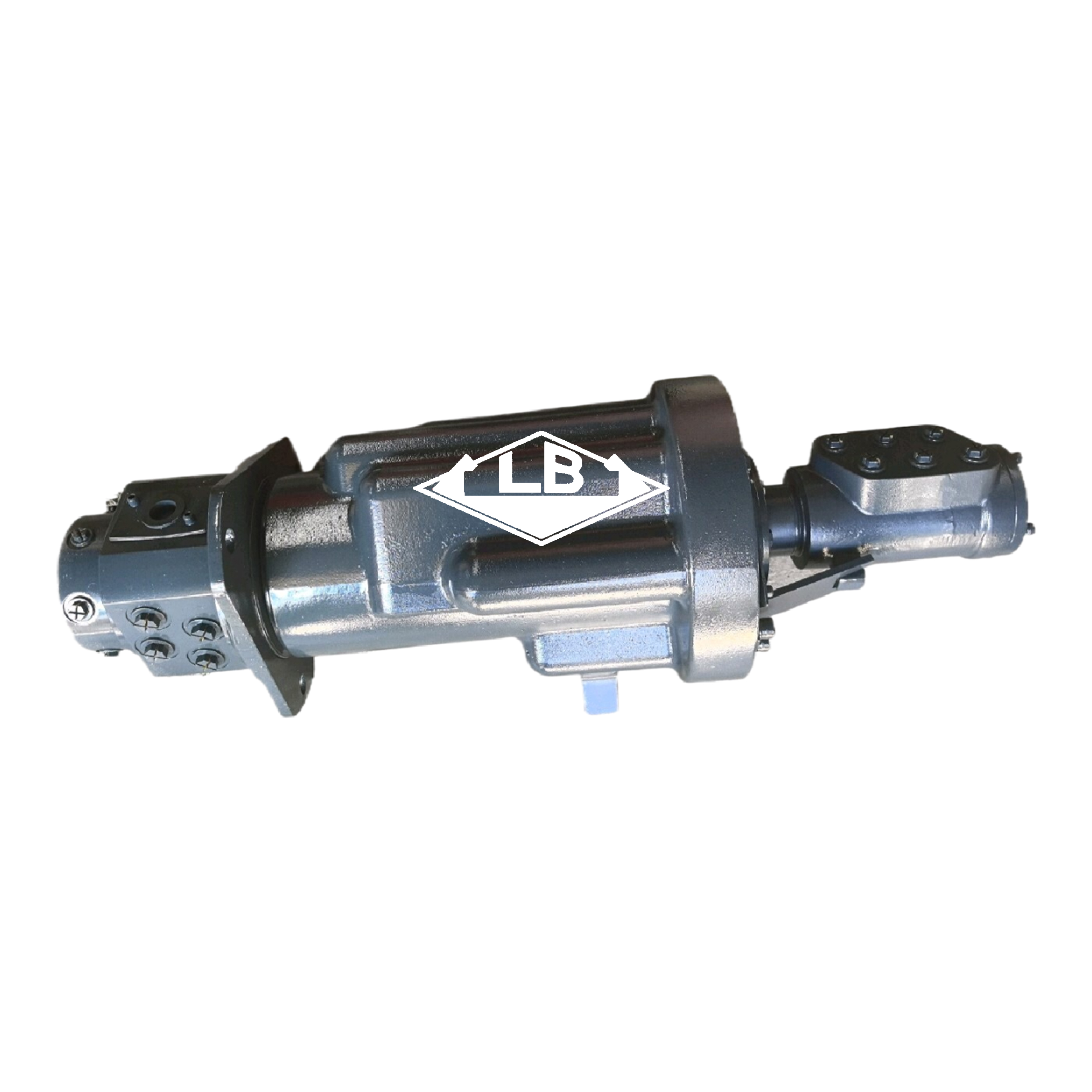

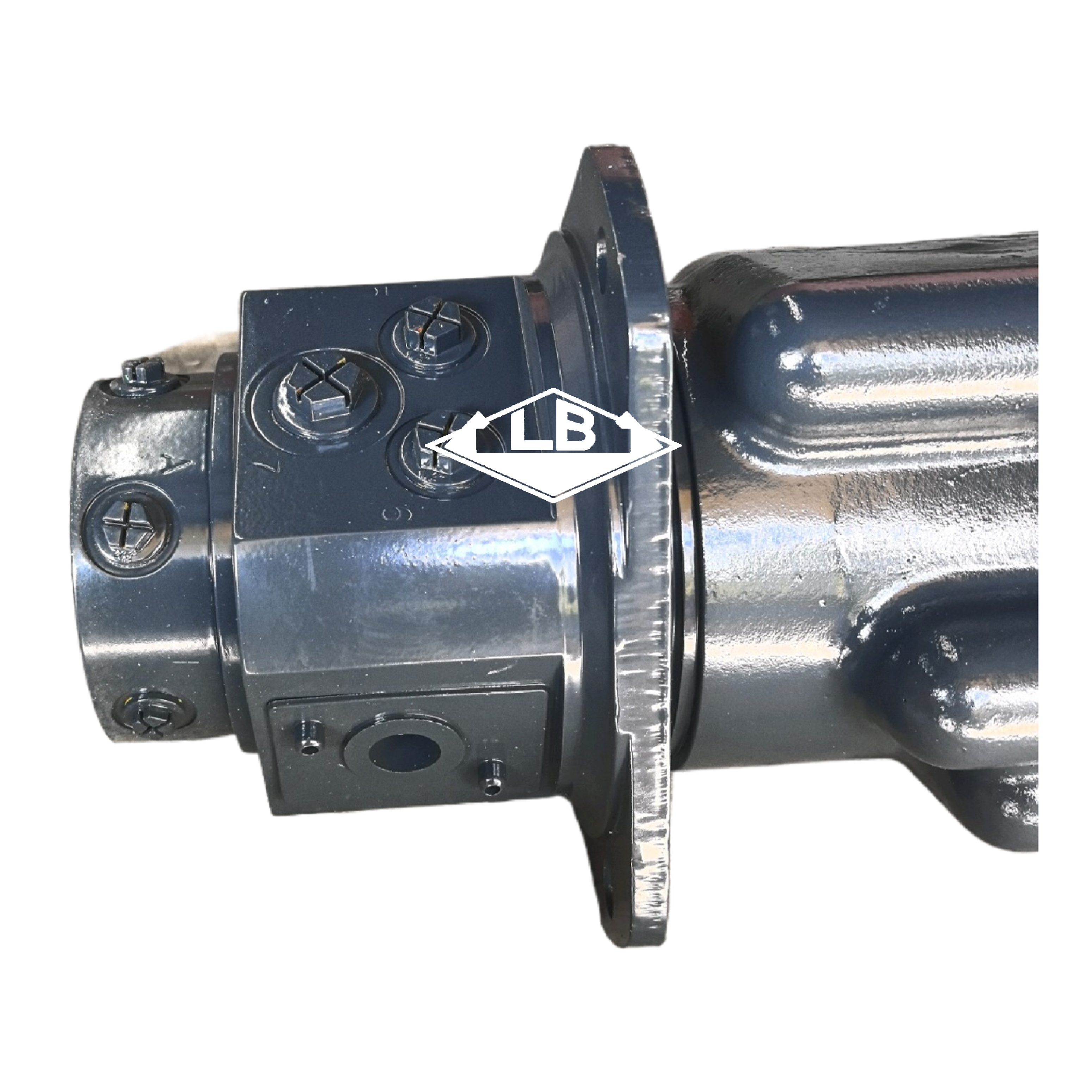

Solar150W-7 SolarW160 Center Joint 2480-9022akt para excavador de doosán

Estado de Disponibilidad:

Cantidad:



Preguntar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	Solar150W-7 SolarW160 Swing Gearbox
Equipo	Aplicar a Doosan Excavator
Parte no.	2480-9022AKT
No.1 dientes de spline de engranaje solar	18 splines
Dientes del eje del piñón oscilante	13 T
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

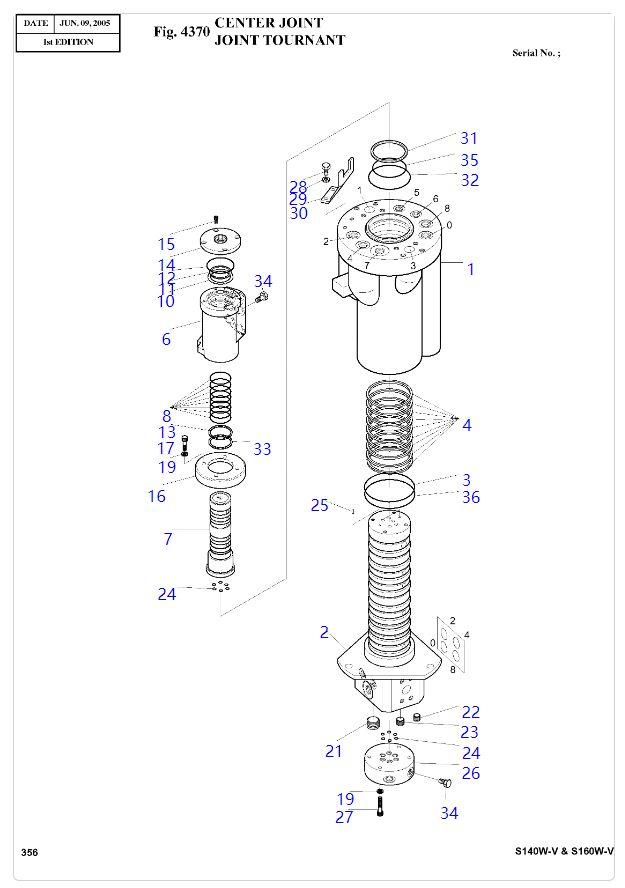

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita
-.	2480-9022B	[1]	Centro de la articulación Komatsu China
			[ 'DESC: Junta Central ']
1.	TJ13-3010-E	[1]	Hub (principal) Komatsu China
			[ 'Desc: Carter ']
2.	TJ13-3020-J	[1]	Eje Ass'y Komatsu China
			[ 'Desc: Arbre ']
3.	-	[1]	Junta tórica 1BP-120 Komatsu China
			[ 'Sc: K ', 'Desc: Junta Torique ']
4.	SJD-100-70	[9]	Sello; Slipper Komatsu China
			[ 'SC: K ', 'Desc: Joint ']
6.	TJ13-3040-D	[1]	Hub (Top) Komatsu China
			[ 'Desc: Carter ']
7.	TJ13-3050-F	[1]	Eje (arriba) Komatsu China
			[ 'Desc: Arbre ']
10.	TJ13-3060	[1]	Spacer Komatsu China
			[ 'Desc: Entretoise ']
11.	S6500480	[1]	Anillo; retener a Komatsu China
			[ 'Desc: Rondelle de Retenue ']
12.	S8010650	[1]	Junta tórica 1AG-65 Komatsu China
			[ 'Sc: K ', 'Desc: Junta Torique ']
14.	TJ13-3070-A	[1]	Cubierta (arriba) Komatsu China
			[ 'Desc: Couvercle ']
15.	S2204463	[4]	Perno; llave M6X12 Komatsu China
			[ 'Desc: Boulon A 6 PANS ']
16.	TJ13-3080-A	[1]	Cubierta (principal) Komatsu China
			[ 'Desc: Couvercle ']
17.	S2209063	[4]	Perno; enchufe M8x25 Komatsu China
			[ 'Desc: Boulon A 6 PANS Creux ']
19.	S5100503	[8]	Arandela; Spring M8 Komatsu China
			[ 'Desc: Rondelle Elastique ']
21.	2181-1116d5	[3]	Enchufe PT3/4 Komatsu China
			[ 'Desc: Bouchon ']
22.	2181-1116d2	[2]	Enchufe PT1/4 Komatsu China
			[ 'Desc: Bouchon ']
23.	2181-1116d3	[4]	Enchufe PT3/8 Komatsu China
			[ 'Desc: Bouchon ']
24.	S8000101	[12]	Junta tórica 1ap-10 Komatsu China
			[ 'Sc: K ', 'Desc: Junta Torique ']
25.	123-00236	[2]	Pin Komatsu China
			[ 'Desc: Bruche ']
26.	TJ13-3090	[1]	Adaptador Komatsu China
			[ 'Desc: Adapteur ']
27.	S2209463	[4]	Perno; llave M8X45 Komatsu China
			[ 'Desc: Boulon A 6 PANS ']
28.	S0511853	[2]	Bolt; Hex M10X20 Komatsu China
			[ 'Desc: Boulon A 6 PANS ']
29.	S5100603	[2]	Arandela; primavera M10 Komatsu China
			[ 'Desc: Rondelle Elastique ']
30.	TJ13-3100	[1]	Placa Komatsu China
			[ 'Desc: placa ']
31.	TJ13-3110	[1]	China Komatsu
			[ 'Desc: Cale ']
32.	S8011100	[1]	Junta tórica 1AG-110 Komatsu China
			[ 'Sc: K ', 'Desc: Junta Torique ']
33.	TJ13-3120	[1]	Anillo; usa komatsu china
			[ 'SC: K ', 'Desc: Bague ']
34.	2181-1950d1	[2]	Enchufe Komatsu China
			[ 'Desc: Bouchon ']
36.	S8001401	[1]	Junta tórica Komatsu China
			[ 'Sc: K ', 'Desc: Junta Torique ']
*.	2480-9022AKT	[1]	Kit de sello; Center Joint Komatsu China
			[ 'Desc: Kit d'Etancheite ']
