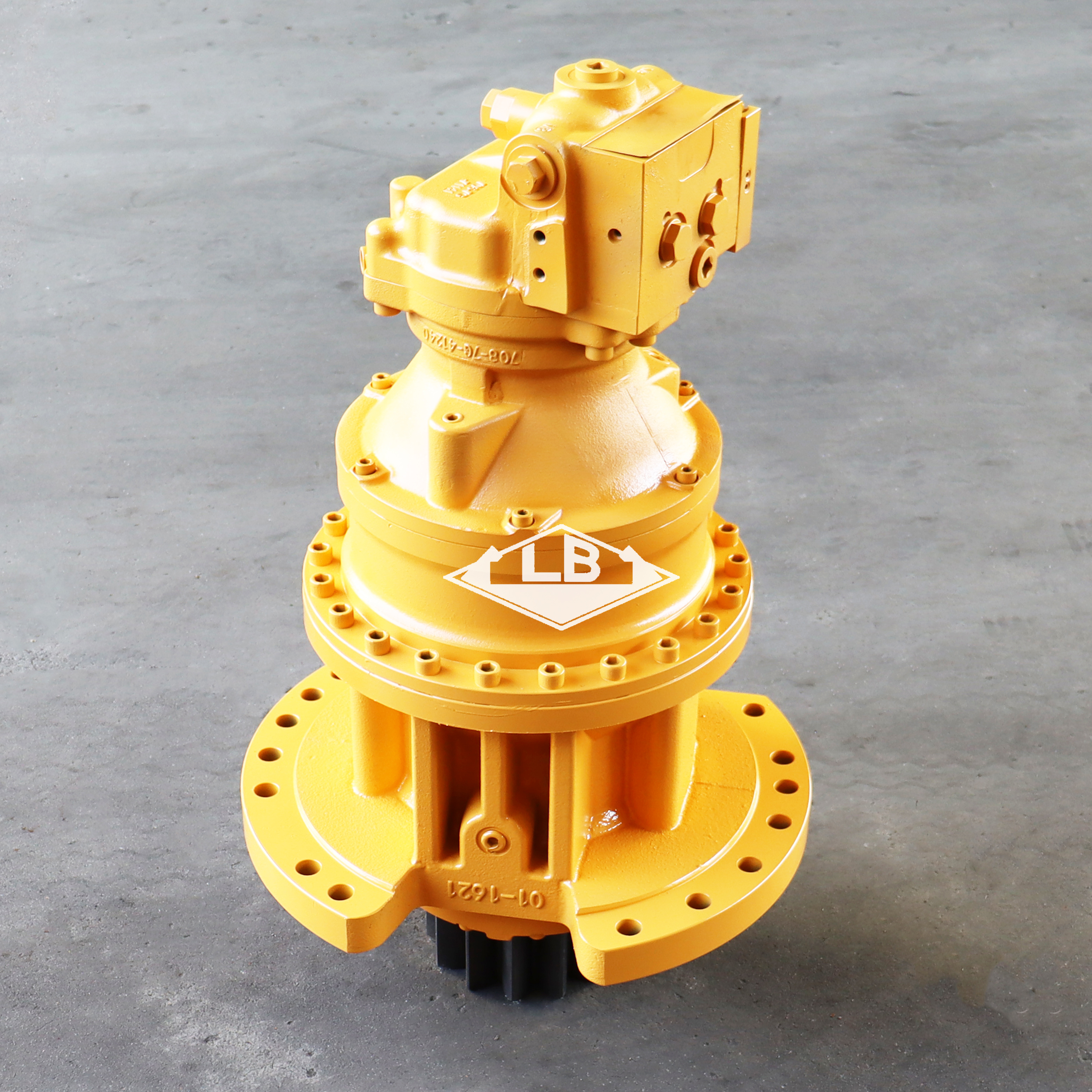

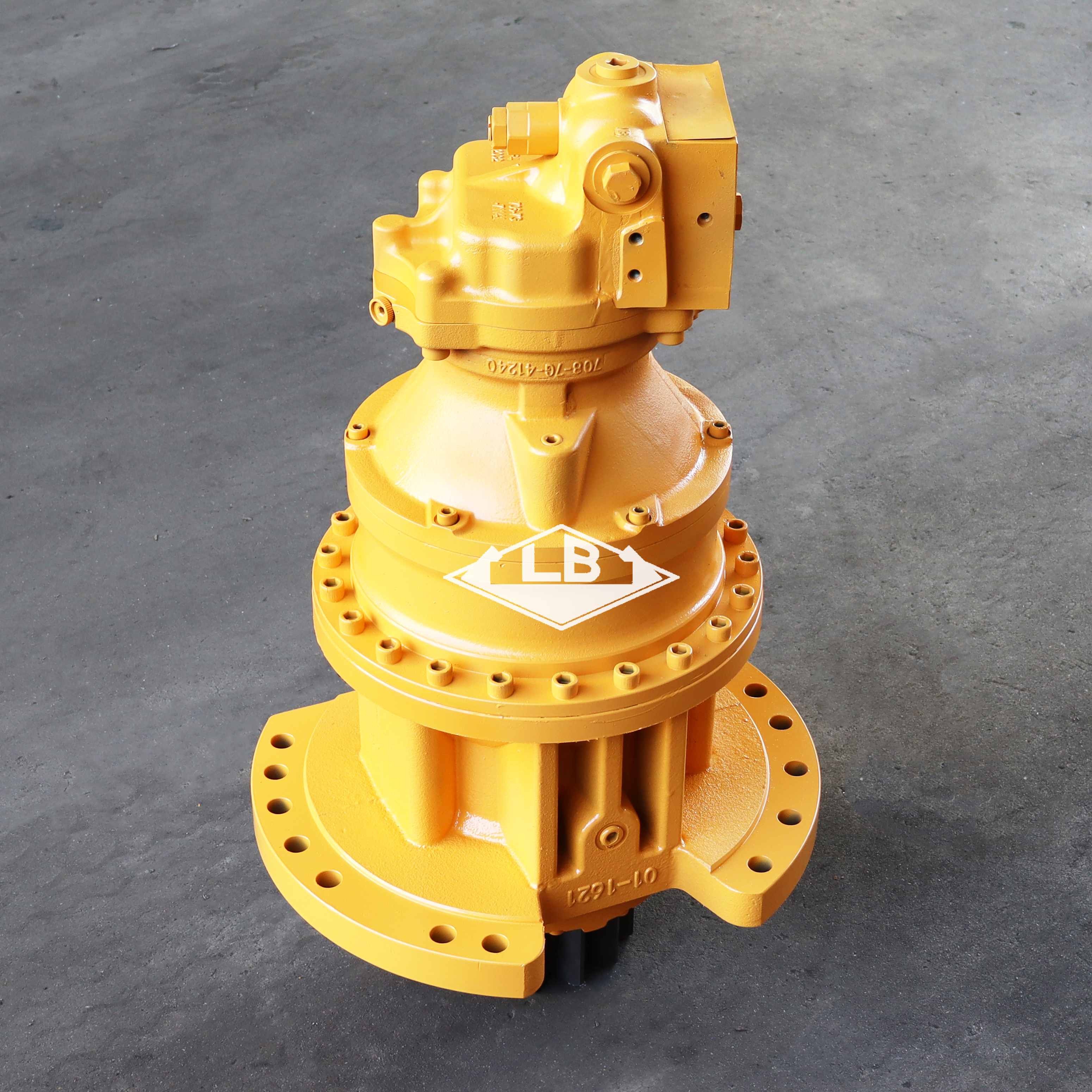

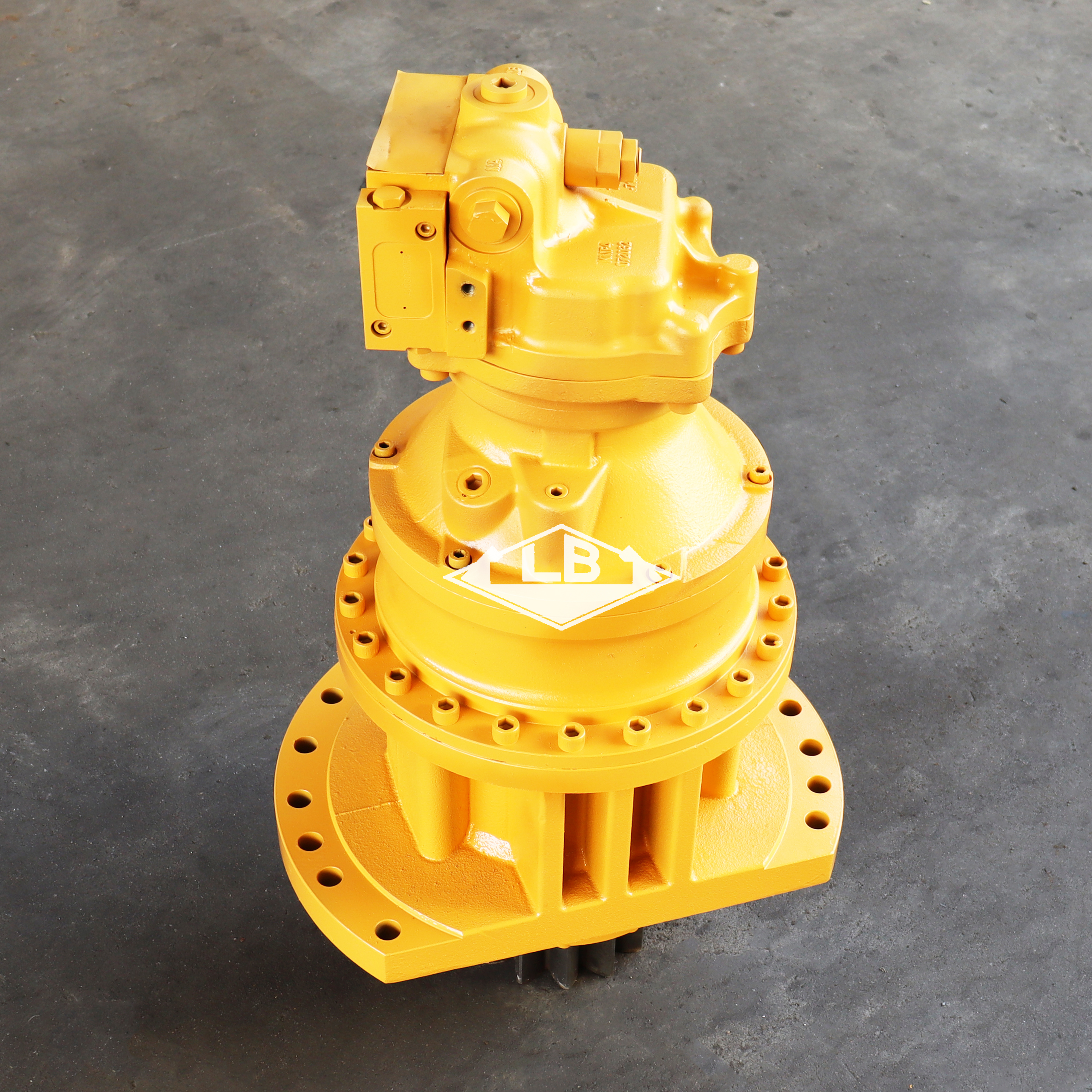

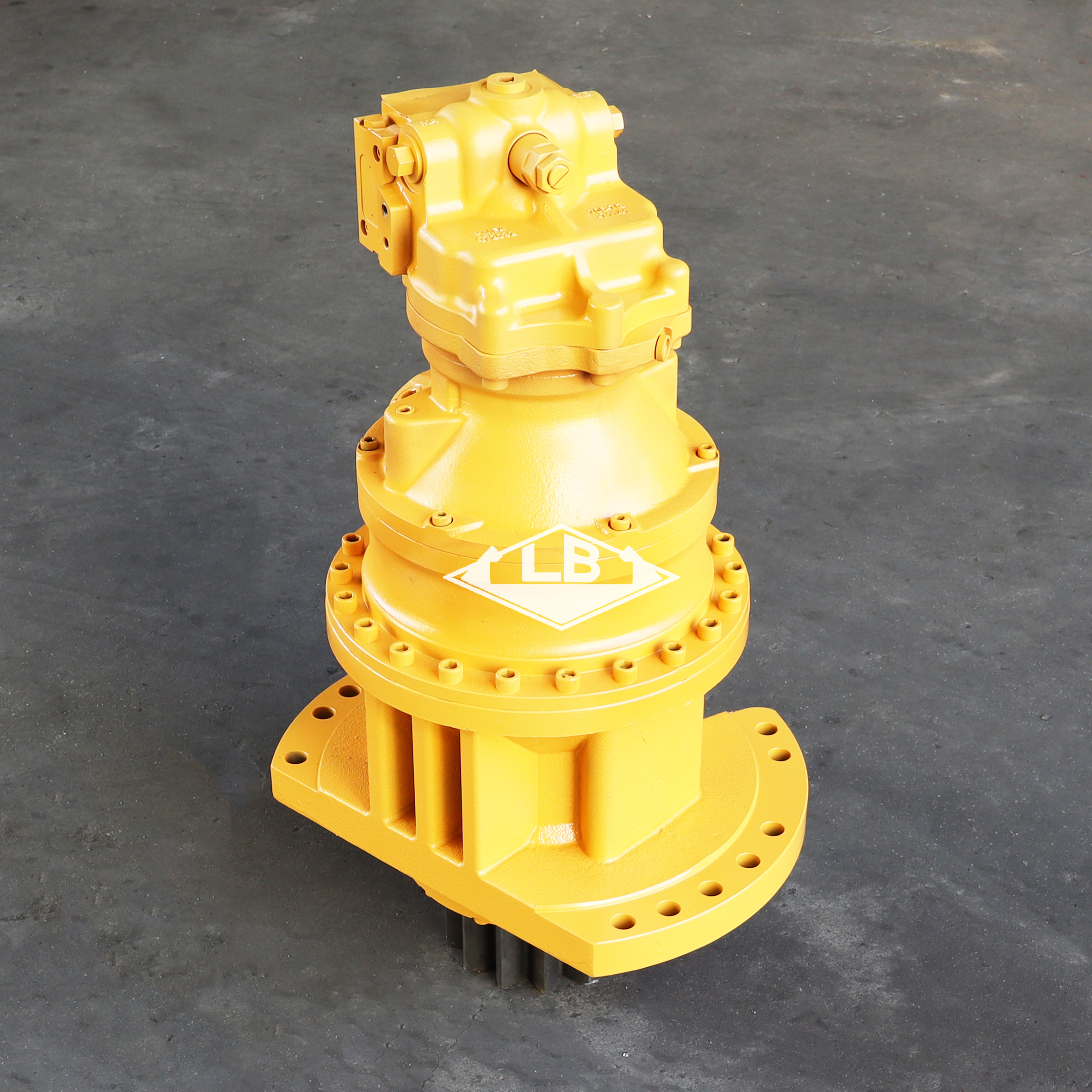

PC220-7 Swing Machinery Assy 706-7G-01041 206-26-00401 PC220-7 Swing Drive

Estado de Disponibilidad:

Cantidad:



Preguntar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	PC220-7 Swing Gearbox
Equipo	Aplicar a la excavadora de Komatsu
Parte no.	706-7G-01041 206-26-00401
No.1 dientes de spline de engranaje solar	18 splines
Dientes del eje del piñón oscilante	13 T
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

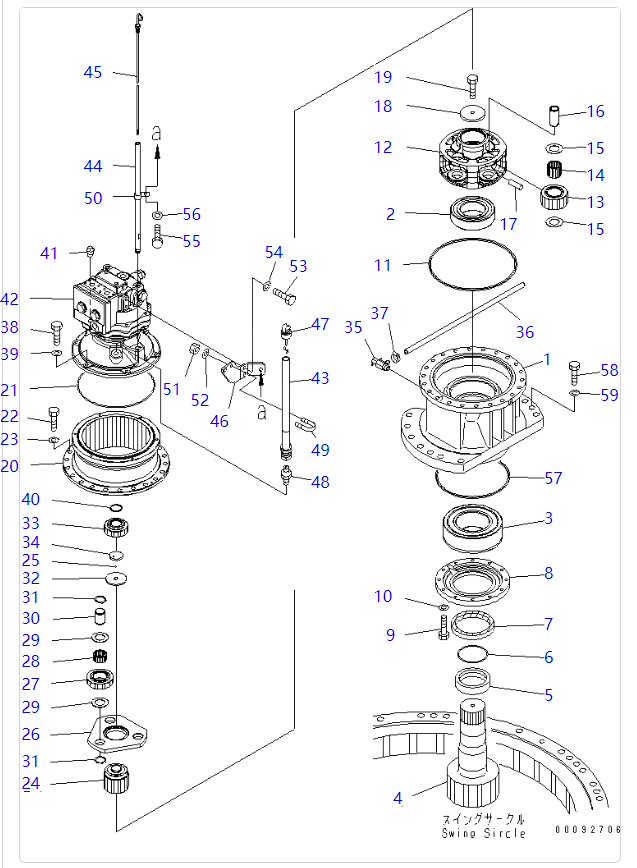

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
1.	206-26-73110	[1]	Caso Komatsu	98 kg.
			[ 'SN: 60601-UP ']
2.	206-26-73150	[1]	Komatsu con Komatsu	4.64 kg.
			[ 'SN: 60601-UP ']
3.	206-26-73160	[1]	Con Komatsu China	12.5 kg.
			[ 'SN: 60601-UP ']
4.	206-26-73130	[1]	Eje komatsu	30.42 kg.
			[ 'SN: 60601-UP ']
5.	206-26-73140	[1]	Espaciador Komatsu	0.86 kg.
			[ 'SN: 60601-UP ']
6.	07000-15100	[1]	Junta tórica Komatsu China	0.01 kg.
			[ 'SN: 60601-UP '] Análogos: [ 'YM24311001000 ', '0700005100 ']
7.	20y-26-22420	[1]	Sello Komatsu China	0.3 kg.
			[ 'SN: 60601-UP ']
8.	206-26-73120	[1]	Cubra a Komatsu China	4.4 kg.
			[ 'SN: 60601-UP ']
9.	01010-81040	[12]	Perno komatsu	0.288 kg.
			[ 'SN: 60601-UP '] Análogos: [ '0101051040 ', 'R010101081040 ']
10.	01643-31032	[12]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 60601-up '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '0164331022 ', '0164321032 ', '01643010101031032 ', '6127212530 ', '802170002 ', 'R01643331032 ']
11.	07000-15310	[1]	Junta tórica Komatsu China	0.035 kg.
			[ 'SN: 60001-UP '] Análogos: [ '0700005310 ']
12.	206-26-71480	[1]	Transportista komatsu	10.88 kg.
			[ 'Sn: 60001-up ']
13.	206-26-71440	[4]	Engranaje komatsu	1.91 kg.
			[ 'Sn: 60001-up ']
14.	22U-26-21320	[8]	Komatsu con Komatsu	1.1 kg.
			[ 'Sn: 60036-UP ']
15.	206-26-71520	[8]	Arandela de empuje Komatsu	0.1 kg.
			[ 'Sn: 60001-up ']
16.	206-26-71510	[4]	Pin Komatsu	0.97 kg.
			[ 'Sn: 60001-up ']
17.	20y-26-21330	[4]	Pin Komatsu China	0.1 kg.
			[ 'Sn: 60001-up ']
18.	20y-26-21240	[1]	Placa Komatsu	5.1 kg.
			[ 'Sn: 60001-up ']
19.	112-32-11211	[1]	Perno komatsu	0.09 kg.
			[ 'Sn: 60001-up ']
20.	206-26-71452	[1]	Engranaje komatsu	28.79 kg.
			[ 'SN: 60283-UP ']
21.	20k-22-11190	[1]	Junta tórica Komatsu	0.02 kg.
			[ 'SN: 60001-UP '] Análogos: [ '20G2211190 ']
22.	01010-81440	[22]	Perno komatsu	0.073 kg.
			[ 'SN: 60001-UP '] Análogos: [ '0101061440 ', '0101031440 ', '0101051440 ', '0104031440 ']
23.	01643-31445	[22]	Lavadora komatsu	0.019 kg.
			[ 'Sn: 60001-UP '] Análogos: [ '0164301432 ']
24.	206-26-71430	[1]	Engranaje komatsu	2.33 kg.
			[ 'Sn: 60001-up ']
25.	04260-01270	[1]	Bola komatsu oem	0.009 kg.
			[ 'Sn: 60001-up ']
26.	206-26-71470	[1]	Transportista komatsu	3.9 kg.
			[ 'Sn: 60001-up ']
27.	206-26-71420	[3]	Engranaje komatsu	0.83 kg.
			[ 'Sn: 60001-up ']
28.	20y-27-22210	[3]	Con Komatsu China	0.12 kg.
			[ 'SN: 60001-UP '] Análogos: [ '20y2721260 ']
29.	22U-26-21230	[6]	Lavadora komatsu	1 kg.
			[ 'Sn: 60001-up ']
30.	206-26-71210	[3]	Pin Komatsu	0.42 kg.
			[ 'Sn: 60001-up ']
31.	04064-03515	[6]	Anillo komatsu	0.005 kg.
			[ 'Sn: 60001-up ']
32.	206-26-71350	[1]	Titular Komatsu	0.21 kg.
			[ 'Sn: 60001-up ']
33.	206-26-71410	[1]	Engranaje komatsu	0.83 kg.
			[ 'Sn: 60001-up ']
34.	206-26-71341	[1]	Placa Komatsu China
			[ 'SN: 60593-UP ']
35.	195-03-13241	[1]	Válvula komatsu	0.9 kg.
			[ 'Sn: 60001-up ']
36.	07270-21560	[1]	Tubo komatsu	0.336 kg.
			[ 'Sn: 60001-up ']
37.	07281-00197	[1]	Clamp komatsu	0.015 kg.
			[ 'SN: 60001-UP '] Análogos: [ '1950313250 ']
38.	01010-81035	[6]	Perno komatsu	0.033 kg.
			[ 'SN: 60001-UP '] Análogos: [ '801015556 ', '01010d1035 ', '0101051035 ']
39.	01643-51032	[6]	Lavadora komatsu	0.17 kg.
			[ 'SN: 60001-UP '] Análogos: [ 'R0164351032 ']
40.	22U-26-21280	[1]	Anillo komatsu	0.001 kg.
			[ 'SN: 60001-UP '] Análogos: [ '20y2622270 ']
41.	07043-00312	[1]	Enchufe komatsu	0.015 kg.
			[ 'Sn: 60001-UP '] Análogos: [ 'YMR000378 ', 'YM23871030000 ']
42.	706-7G-01041	[1]	Motor Ass'y Komatsu	57.5 kg.
			[ 'SN: 69348-UP '] Análogos: [ '7067G03040 ', '7067G01040 ', '7067G01130 ', '7067G03041 ']]
43.	20y-26-31410	[1]	Tubo Komatsu China
			[ 'Sn: 60001-up ']
44.	20y-26-31421	[1]	Relleno Komatsu China
			[ 'SN: 60714-UP ']
45.	20y-26-31431	[1]	Calibre Komatsu	0.07 kg.
			[ 'SN: 60714-UP ']
46.	20y-26-31441	[1]	Soporte komatsu	0.88 kg.
			[ 'Sn: 60001-up ']
47.	22U-26-21920	[1]	Cap Komatsu	0.06 kg.
			[ 'SN: 69348-UP '] Análogos: [ '22U2621460 ']
48.	07238-10630	[1]	Conector komatsu	0.24 kg.
			[ 'Sn: 60001-up ']
49.	07283-32738	[1]	Clip komatsu	0.084 kg.
			[ 'Sn: 60001-up ']
50.	04434-51710	[1]	Clip komatsu	0.02 kg.
			[ 'Sn: 60001-up ']
51.	01597-01009	[2]	Nuez komatsu	0.011 kg.
			[ 'Sn: 60001-up ']
53.	01010-81030	[2]	Bolt Komatsu OEM	0.03 kg.
			[ 'SN: 60001-UP '] Análogos: [ '801015110 ', 'M0 18011000306 ', 'YM26116100302 ', '0101051030 ']
55.	01010-81025	[1]	Perno komatsu	0.36 kg.
			[ 'SN: 60001-UP '] Análogos: [ '0101051025 ', '0101651025 ', '801015109 ']
57.	07000-15250	[1]	Junta tórica Komatsu China	0.026 kg.
			[ 'SN: 60001-UP '] Análogos: [ '0700005250 ']
58.	01010-82070	[14]	Perno komatsu	0.238 kg.
			[ 'SN: 60001-UP '] Análogos: [ '0101032070 ', '0101062070 ', '0101052070 ', '801015653 ']]
59.	01643-32060	[14]	Lavadora Komatsu China	0.044 kg.
			[ 'Sn: 60001-UP '] Análogos: [ '802170007 ', '0164322045 ', '0164302045 ']
