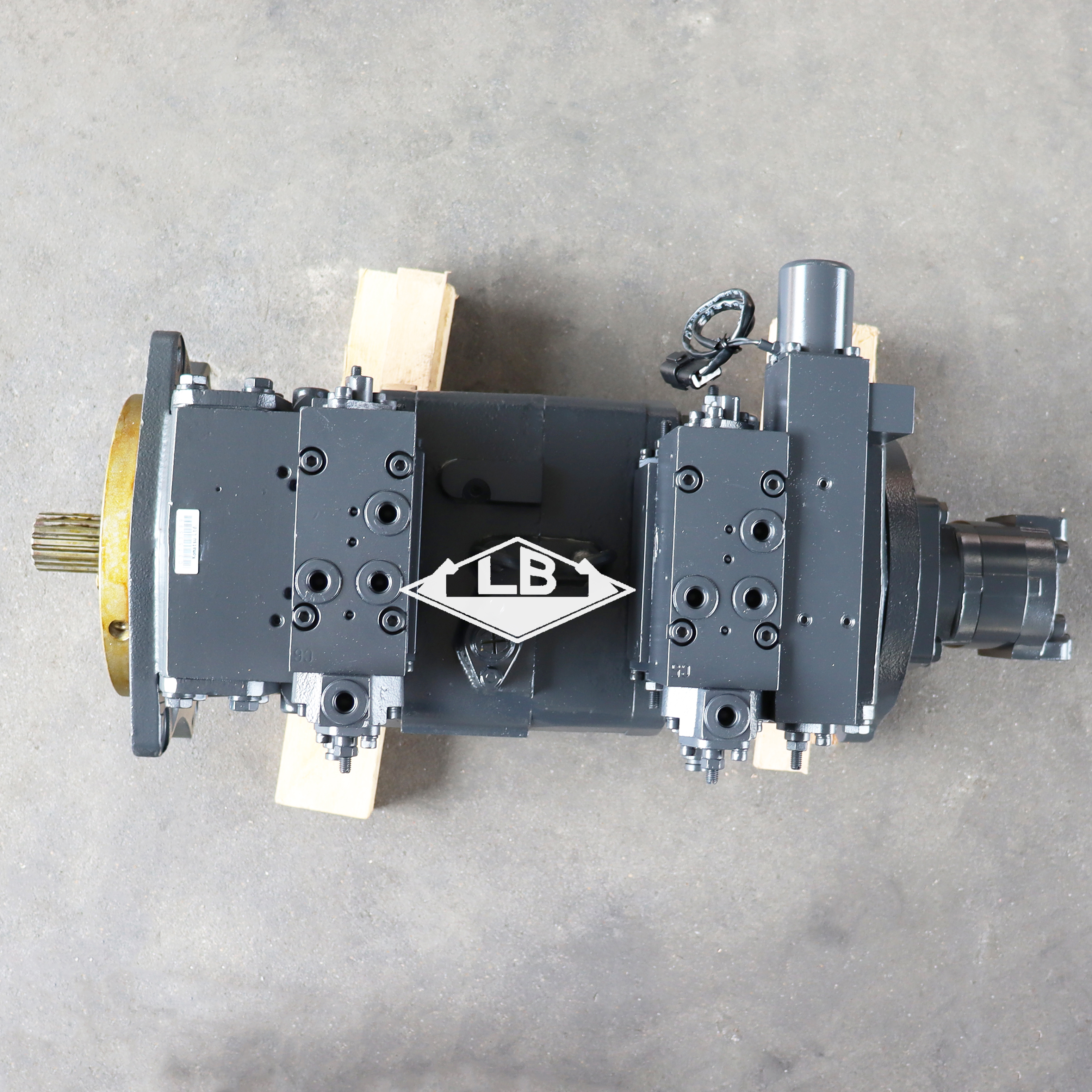

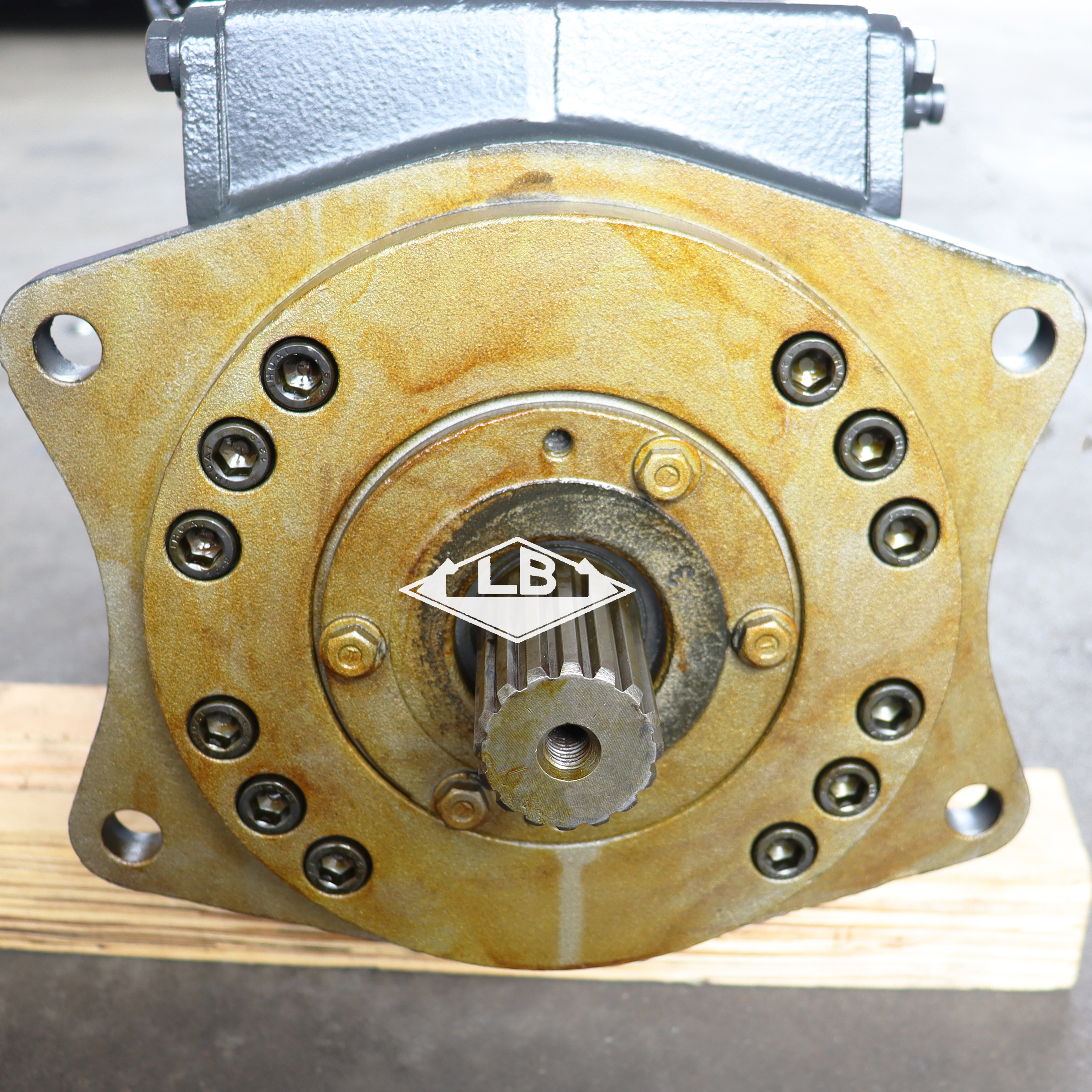

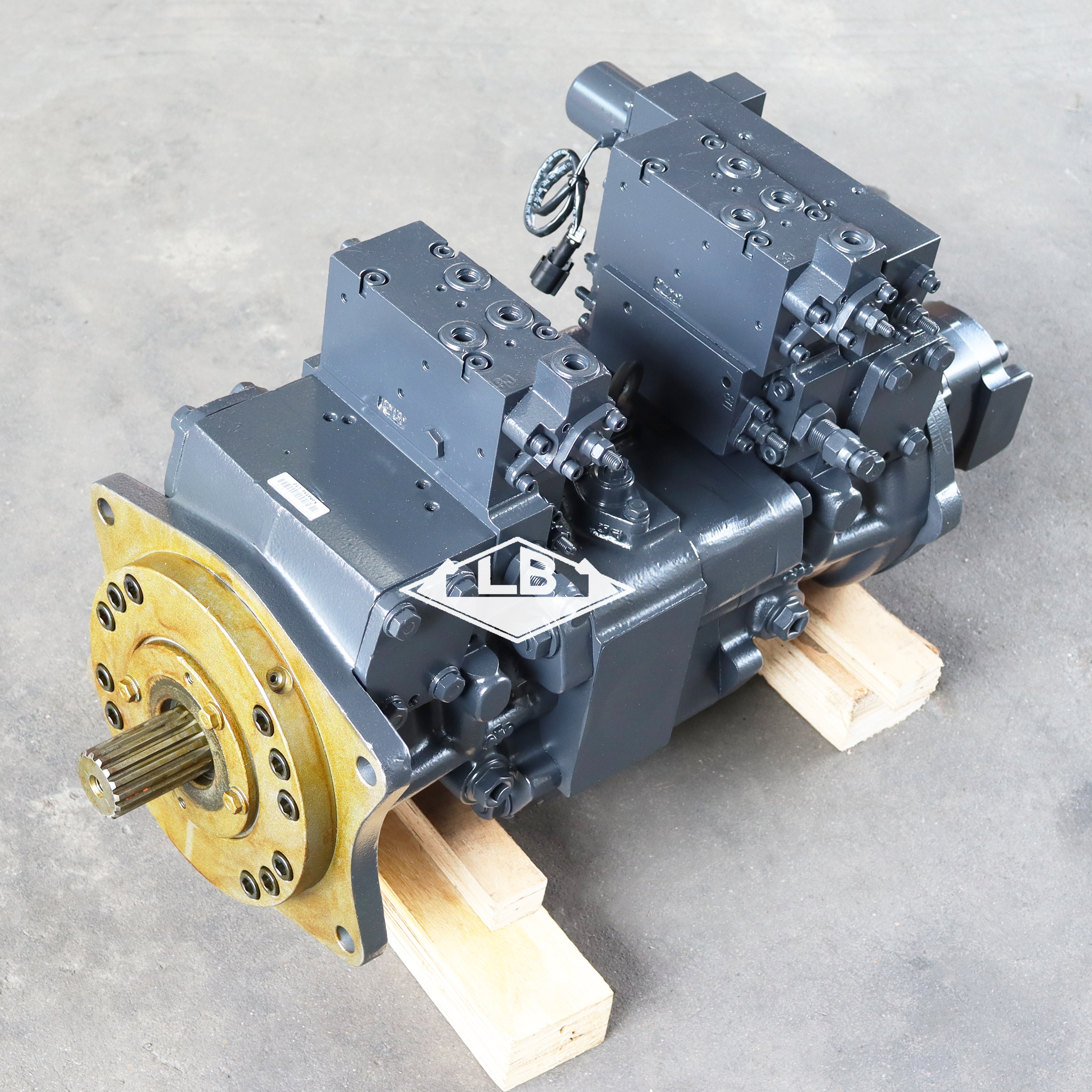

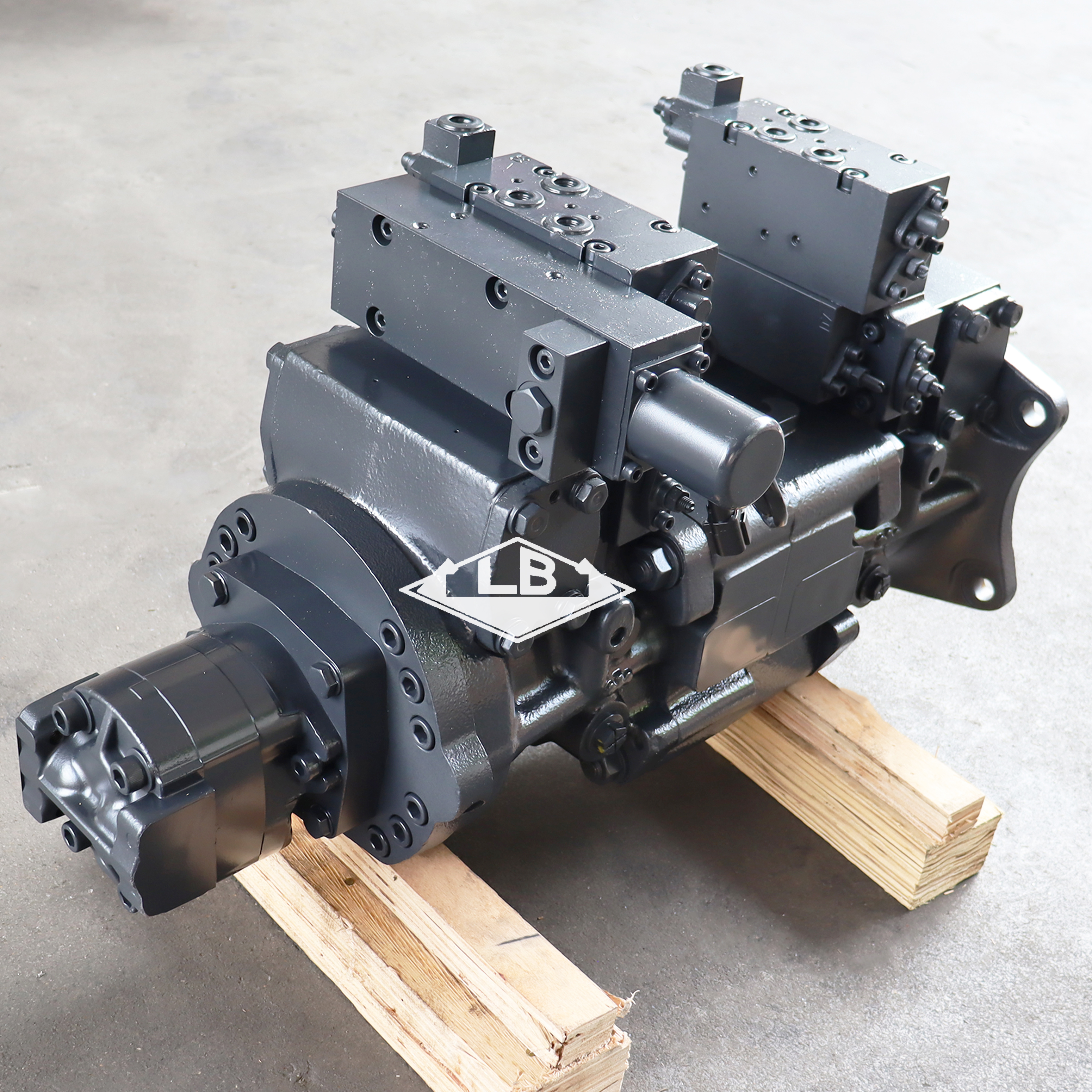

PC1250-8 Bomba principal 708-2L-00680 708-2L-00681 PC1250-8 Bomba principal hidráulica Aplicar para excavadoras Komatsu

Disponibilidad:

Cantidad:



Consultar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	PC1250-8 Bomba principal
Equipo	Aplicar a la excavadora de Komatsu
Parte no.	708-2L-00680 708-2L-00681
dientes del eje del motor
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

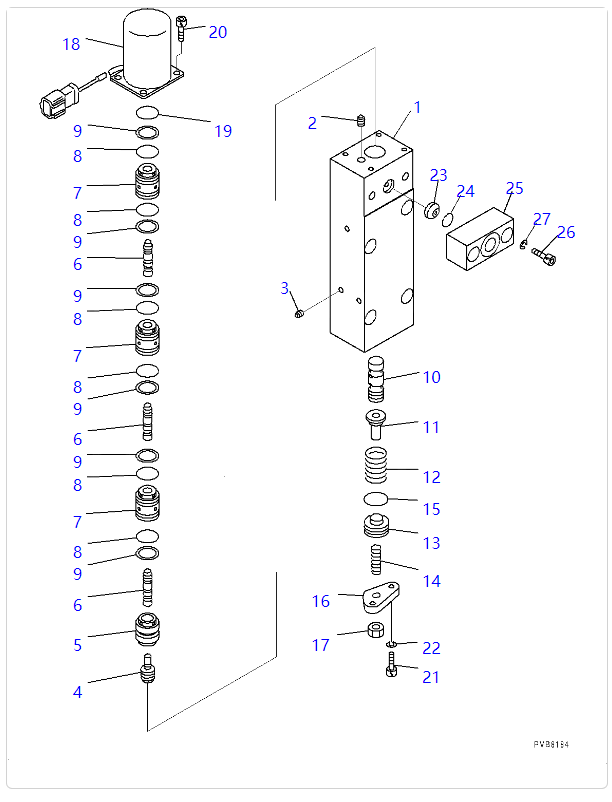

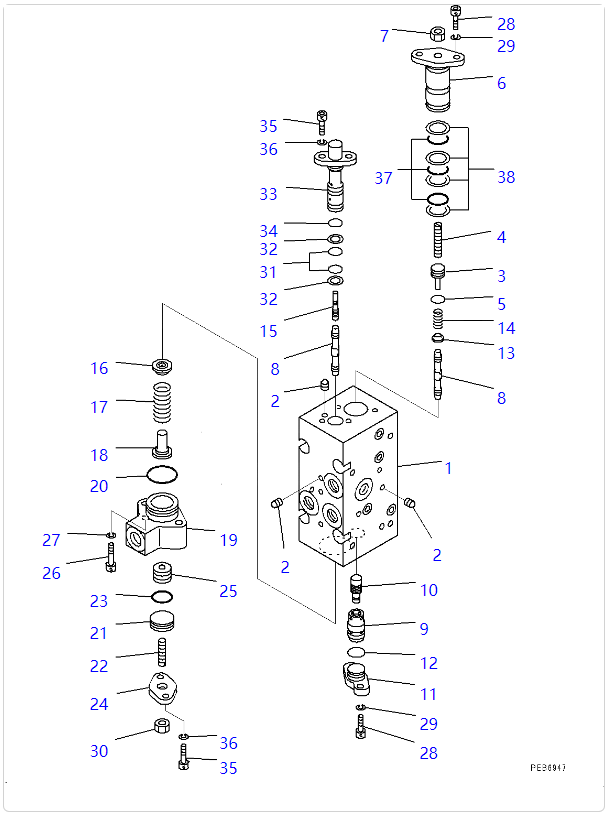

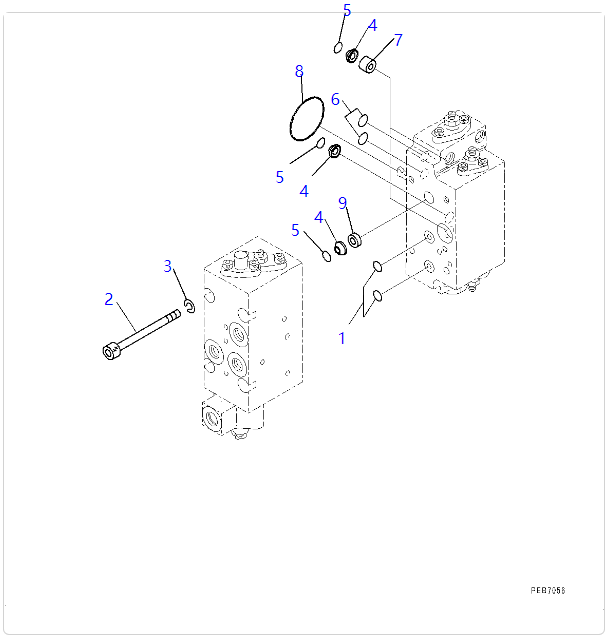

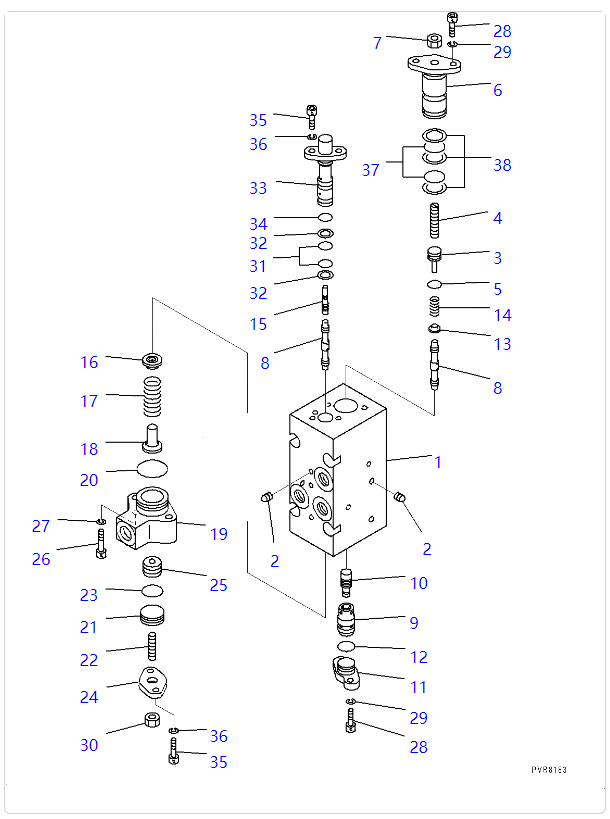

PC1250-8 (6) PC1250-8 (8) PC1250-8 (4) PC1250-8 (2) PC1250-8 (10) PC1250-8 (1)

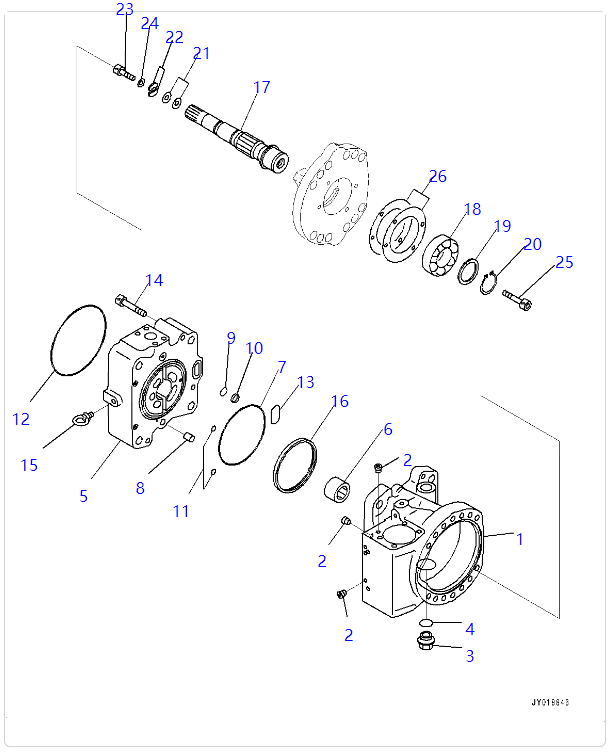

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.
	708-2L-04950	[1]	Ensamblaje de casos, komatsu frontal	23.802 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 3.
3.	07044-12412	[1]	Enchufe komatsu	0.09 kg.
			[ 'Sn: 30158-UP '] Análogos: [ '0704402412 ', 'R0704412412 ']
4.	07002-62434	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7081W28910 ']
	708-2L-05970	[1]	Subconjunto de la tapa final Komatsu China
			[ 'SN: 30229-UP ', 'SCC: C2 '] \| $ 8.
7.	708-2L-32260	[1]	Komatsu con Komatsu	0.2 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L22260 ']
8.	07000-B2135	[1]	Junta tórica Komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	6130-21-1910	[1]	Pin, Dowel Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	07000-B2012	[1]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30229-UP ', 'SCC: C2 ']
11.	708-2L-41270	[1]	Anillo, respaldo de Komatsu China
			[ 'SN: 30229-UP ', 'SCC: C2 ']
12.	07000-B1009	[3]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23910 ']
13.	07000-B3032	[2]	Junta tórica Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	01252-61080	[2]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	01141-81620	[4]	Komatsu	0.232 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	01643-31645	[4]	Lavadora komatsu	0.072 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802170005 ', '0164301645 ']
17.	01582-01613	[4]	Nuez komatsu	0.029 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0150031613 ']
18.	01140-81645	[4]	Stud Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0114061645 ']
21.	720-68-19610	[1]	Pin Komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	04530-11018	[1]	Perno, ojo komatsu	0.079 kg.
			[ 'SN: 30158-UP ']
23.	708-25-13630	[1]	Anillo komatsu	0.13 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

Piezas en el grupo:

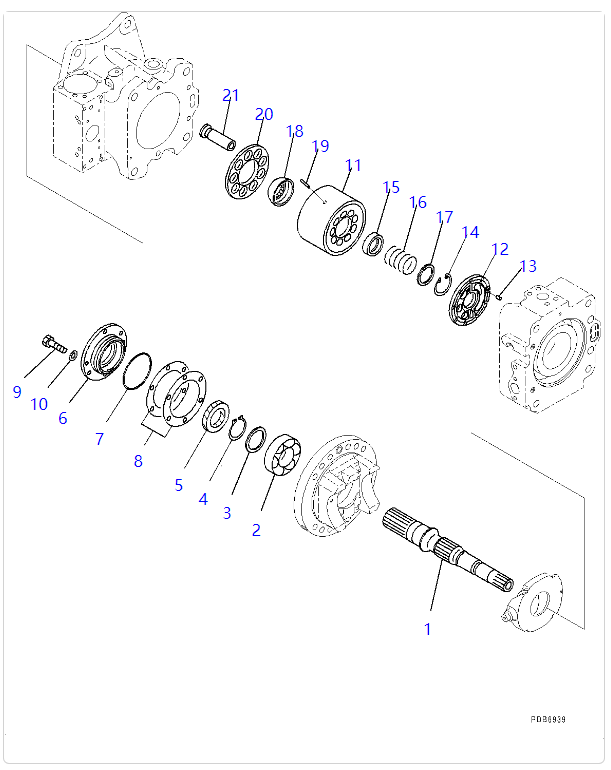

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.
1.	708-2L-22430	[1]	Eje, komatsu delantero	3.111 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
2.	708-2L-32150	[1]	Komatsu con Komatsu	0.6 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082E12152 ', '7082L22150 ', '7082512731 ']
3.	708-2E-05040	[1]	Kit de lavadora komatsu	0.101 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082E12190 ']
4.	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-25-52861	[1]	Sello, petróleo komatsu China	0.078 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7082552860 ', '7067340920 ']
6.	708-25-12812	[1]	Viviando Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
7.	07000-A2080	[1]	Junta tórica Komatsu	0.003 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	708-25-05130	[1]	Kit de cuña komatsu	0.032 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	01010-80820	[4]	Perno komatsu	0.013 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801014067 ', '0101050820 ', '801015086 ']
10.	01643-30823	[4]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802070008 ', '802150008 ', '0160510818 ', '0164310823 ', '802170001 ', '01643a0823 ']]]
	708-2L-04151	[1]	Conjunto de bloques, Komatsu OEM trasero	5.26 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L04050 ', '7082L06370 '] \| $ 19.
13.	720-68-19610	[1]	Pin Komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	04065-04818	[1]	Anillo, snap komatsu oem	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	708-2L-23131	[1]	Asiento komatsu	0.073 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	708-2L-33160	[1]	Primavera Komatsu	0.12 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23151 ']
17.	708-7L-13140	[1]	Asiento komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	708-2L-23351	[1]	Guía, retenedor, retenedor Komatsu OEM	0.14 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
19.	708-2L-23360	[3]	Pin Komatsu	0.003 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	708-2L-33340	[1]	Retenedor, zapato komatsu oem	0.3 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-2L-33310	[9]	Subconjunto de pistón Komatsu OEM	0.211 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23313 ']

Piezas en el grupo:

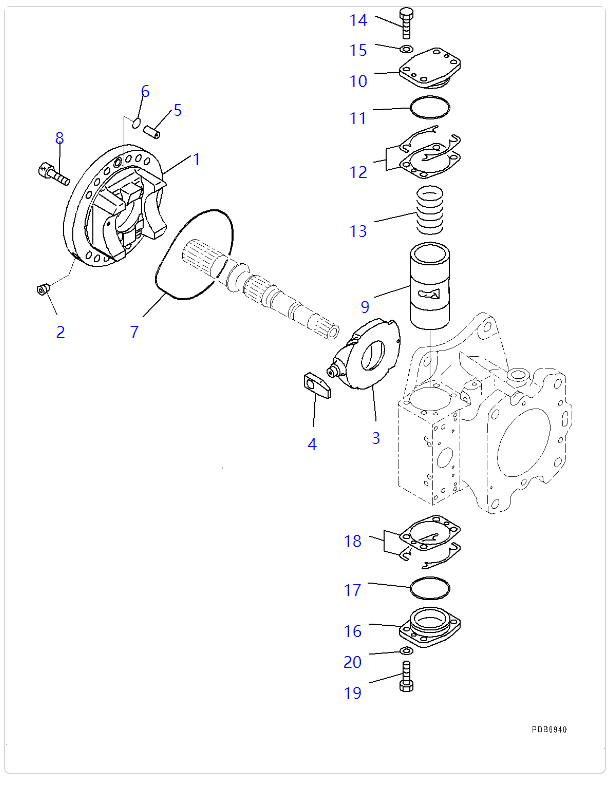

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.

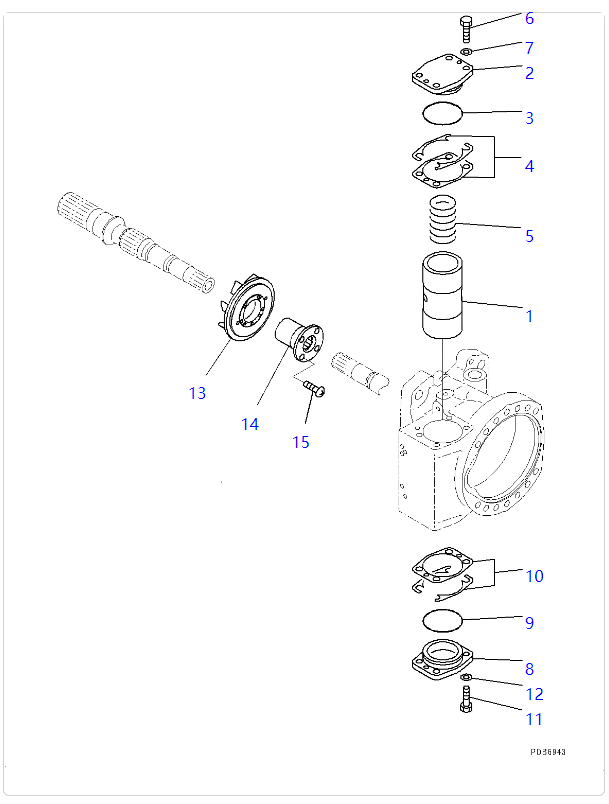

	708-2L-04730	[1]	Asamblea de cuna, Komatsu delantero	11.35 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 3.
	708-2L-04840	[1]	Subconjunto de cuna, Komatsu delantero	9.15 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
4.	708-2L-23730	[1]	Control deslizante Komatsu	0.1 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-25-12330	[1]	Articulación komatsu	0.025 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	07000-B2015	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
7.	708-25-62361	[1]	Junta tórica Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	01252-61230	[12]	Bolt, Hexagon Socket Head Komatsu	0.044 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	708-25-14211	[1]	Pistón komatsu	2.31 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-25-14140	[1]	Cap Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	07000-B2065	[1]	Junta tórica Komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
12.	708-25-05050	[1]	Kit de cuña komatsu	0.05 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	708-25-14130	[1]	Primavera Komatsu	0.25 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	01016-51035	[4]	Perno komatsu	0.033 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801015111 ', '0101631035 ']
15.	01643-31032	[4]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 30158-UP ', 'Scc: C2 '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '01643331022 ' '0164321032 ', ',', ',' '0164301032 ', '6127212530 ', '802170002 ', 'R0164331032 ']
16.	708-25-14150	[1]	Cap Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']

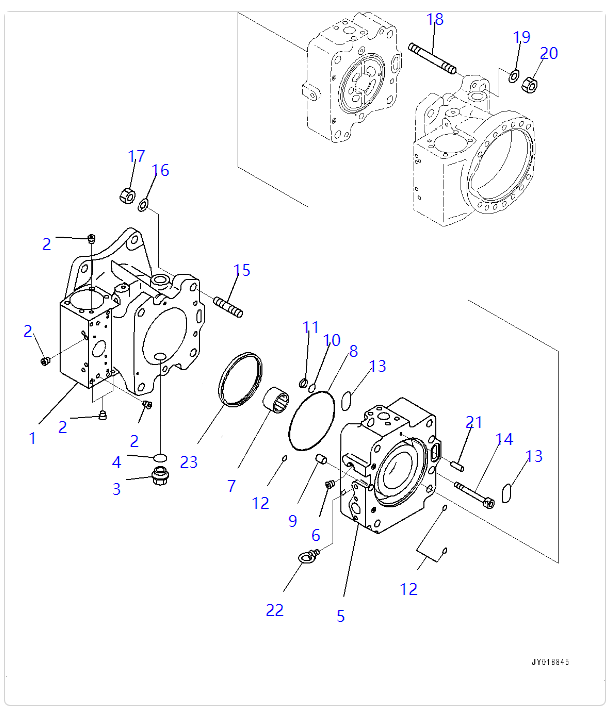

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 1.
	708-2L-04960	[1]	Montaje de casos, Komatsu trasero	19.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.
3.	07044-12412	[1]	Enchufe komatsu	0.09 kg.
			[ 'Sn: 30158-UP '] Análogos: [ '0704402412 ', 'R0704412412 ']
4.	07002-62434	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7081W28910 ']
5.	708-2L-21970	[1]	Cape, Fin Komatsu China
			[ 'SN: 30229-UP ', 'SCC: C2 ']
6.	708-2L-32260	[1]	Komatsu con Komatsu	0.2 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L22260 ']
7.	07000-B2135	[1]	Junta tórica Komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	6130-21-1910	[1]	Pin, Dowel Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	07000-B2012	[1]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30229-UP ', 'SCC: C2 ']
10.	708-2L-41270	[1]	Anillo, respaldo de Komatsu China
			[ 'SN: 30229-UP ', 'SCC: C2 ']
11.	07000-B1009	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23910 ']
12.	07000-B5165	[1]	Junta tórica Komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	07000-B3032	[1]	Junta tórica Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	01252-61080	[4]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	04530-11018	[1]	Perno, ojo komatsu	0.079 kg.
			[ 'SN: 30158-UP ']
16.	708-25-13630	[1]	Anillo komatsu	0.13 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
17.	708-2L-22450	[1]	Eje, China trasera de Komatsu
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	708-2L-32150	[1]	Komatsu con Komatsu	0.6 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082E12152 ', '7082L22150 ', '7082512731 ']
19.	708-2E-05040	[1]	Kit de lavadora komatsu	0.101 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082E12190 ']
20.	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-25-05021	[1]	Kit de cuña komatsu	0.013 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	708-25-12950	[2]	Placa Komatsu	0.006 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
23.	01252-61040	[1]	Bolt, Hexagon Socket Head Komatsu	0.037 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125271040 ']
24.	01643-31032	[1]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 30158-UP ', 'Scc: C2 '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '01643331022 ' '0164321032 ', ',', ',' '0164301032 ', '6127212530 ', '802170002 ', 'R0164331032 ']
25.	01252-31016	[1]	Bolt Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	708-25-05130	[1]	Kit de cuña komatsu	0.032 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

PC1250-8 (5)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.
	708-2L-04141	[1]	Conjunto de bloques, komatsu delantero	5.332 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L04040 ', '7082L06360 '] \| $ 3.
3.	720-68-19610	[1]	Pin Komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	04065-04818	[1]	Anillo, snap komatsu oem	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-2L-23131	[1]	Asiento komatsu	0.073 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	708-2L-33160	[1]	Primavera Komatsu	0.12 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23151 ']
7.	708-7L-13140	[1]	Asiento komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	708-2L-23351	[1]	Guía, retenedor, retenedor Komatsu OEM	0.14 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	708-2L-23360	[3]	Pin Komatsu	0.003 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-2L-33340	[1]	Retenedor, zapato komatsu oem	0.3 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	708-2L-33310	[9]	Subconjunto de pistón Komatsu OEM	0.211 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L23313 ']
	708-2L-04430	[1]	Asamblea de cuna, China trasera de Komatsu
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 15.
	708-2L-04650	[1]	Subconjunto de cuna, China trasera de Komatsu
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 16.
15.	708-2L-23730	[1]	Control deslizante Komatsu	0.1 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	708-25-12330	[1]	Articulación komatsu	0.025 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
17.	07000-B2015	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	708-25-62361	[1]	Junta tórica Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
19.	01252-61230	[12]	Bolt, Hexagon Socket Head Komatsu	0.044 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	708-2L-23790	[1]	Tapón komatsu	0.08 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	04020-00616	[1]	Pin, Dowel Komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	706-75-42270	[1]	Tornillo de komatsu	0.003 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

PC1250-8 (6)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-2L-01680	[1]	Subensamblaje de bomba Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 2.
1.	708-25-14112	[1]	Pistón komatsu	2.4 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
2.	708-25-14140	[1]	Cap Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
3.	07000-B2065	[1]	Junta tórica Komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	708-25-05050	[1]	Kit de cuña komatsu	0.05 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-25-14130	[1]	Primavera Komatsu	0.25 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	01016-51035	[4]	Perno komatsu	0.033 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801015111 ', '0101631035 ']
7.	01643-31032	[4]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 30158-UP ', 'Scc: C2 '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '01643331022 ' '0164321032 ', ',', ',' '0164301032 ', '6127212530 ', '802170002 ', 'R0164331032 ']
8.	708-25-14150	[1]	Cap Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	708-25-12542	[1]	Impulsor Komatsu	0.225 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	708-25-52550	[1]	Acoplamiento komatsu	0.51 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	706-73-42270	[4]	Tornillo de komatsu	0.003 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

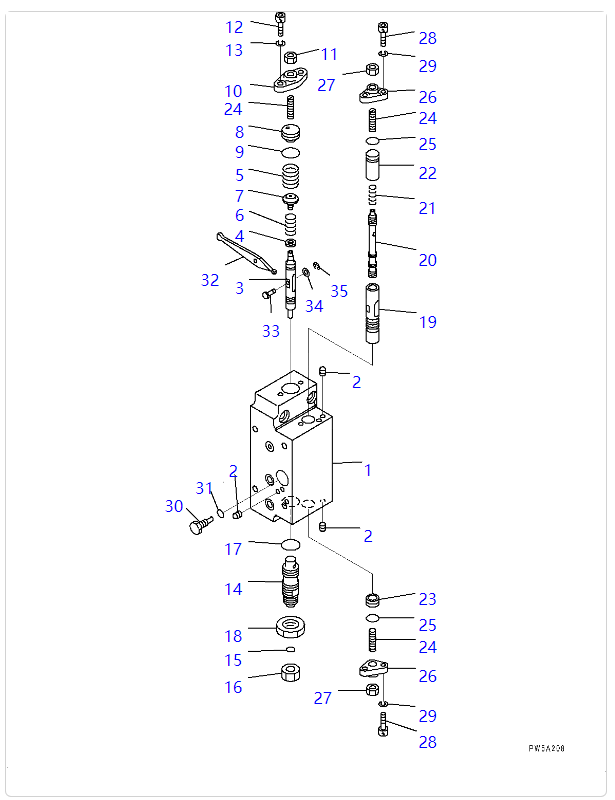

PC1250-8 (7)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85160	[1]	Conjunto de válvula, servo, komatsu delantero	13.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
	708-25-85360	[1]	Subconjunto de válvula, servo, komatsu frontal	6 kg.
			[ 'SN: 30158-UP '] \| $ 3.
	708-25-00830	[1]	Asamblea corporal Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
3.	708-25-15120	[1]	Pistón komatsu	0.055 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	708-25-15130	[1]	Asiento komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-25-25130	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	708-25-55250	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
7.	708-23-15120	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	708-23-15160	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	07000-B2018	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-25-15150	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	01580-10806	[1]	Nuez komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801920104 ']
12.	01252-60616	[2]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230616 ']
13.	01602-20619	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802150506 ']
14.	708-25-55680	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	02896-61009	[1]	Junta tórica Komatsu	0.14 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	02789-00315	[1]	Plug, Cap Komatsu	0.05 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
17.	07002-62034	[1]	Junta tórica Komatsu	0.94 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	07239-12009	[1]	Nuez Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0723902009 ', '0723922009 ']
19.	708-25-15180	[1]	Manga komatsu	0.055 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	708-25-15280	[1]	Buey komatsu	0.03 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-25-15310	[1]	Primavera Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	708-25-15330	[1]	Espaciador Komatsu	0.052 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
23.	708-25-15430	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
24.	708-25-15340	[3]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
25.	07000-B2012	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	708-25-15250	[2]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
30.	708-25-15260	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
31.	07002-60823	[1]	Junta tórica Komatsu	0.18 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
32.	708-25-15270	[1]	Brazo Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
33.	708-25-15360	[1]	Pin Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
34.	708-25-15370	[1]	Lavadora Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
35.	708-25-15380	[1]	Anillo electrónico Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']

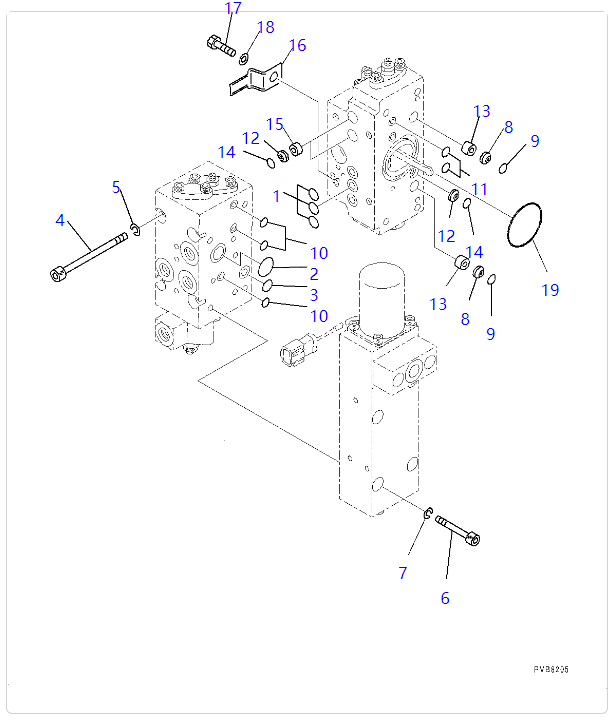

PC1250-8 (8)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85160	[1]	Conjunto de válvula, servo, komatsu delantero	13.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
	708-25-09581	[1]	Conjunto de válvula, CO+NC Komatsu China
			[ 'SN: 30158-UP '] Análogos: [ '7082509580 '] \| $ 3.
	708-23-00430	[1]	Asamblea del cuerpo Komatsu	5.38 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
3.	708-25-17460	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	708-25-17430	[1]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	07000-B2010	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L25990 ']
6.	708-25-17131	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082517130 ']
7.	01580-10806	[1]	Nuez komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801920104 ']
8.	708-25-17141	[2]	Buey komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	708-25-17150	[1]	Manga komatsu	0.032 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-25-17160	[1]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	708-25-17170	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
12.	07000-B2014	[1]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	708-25-17180	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	708-25-17690	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	708-25-17220	[1]	Pistón komatsu	0.009 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	708-25-17370	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082517240 ']
17.	708-25-17250	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	708-25-17470	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
19.	708-23-17290	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	07000-B3028	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-25-17380	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	708-25-15340	[1]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
23.	07000-B2021	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
24.	708-23-17240	[1]	Cubrir komatsu	0.046 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
25.	708-25-17480	[1]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	01252-60630	[2]	Bolt, Hexagon Socket Head Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125240630 ']
27.	01602-20619	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802150506 ']
28.	01252-60616	[4]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230616 ']
31.	07000-B2012	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
32.	07001-02012	[2]	Anillo, respaldo komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
33.	708-25-17451	[1]	Manga Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
38.	07001-02021	[3]	Anillo, respaldo komatsu	0.061 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

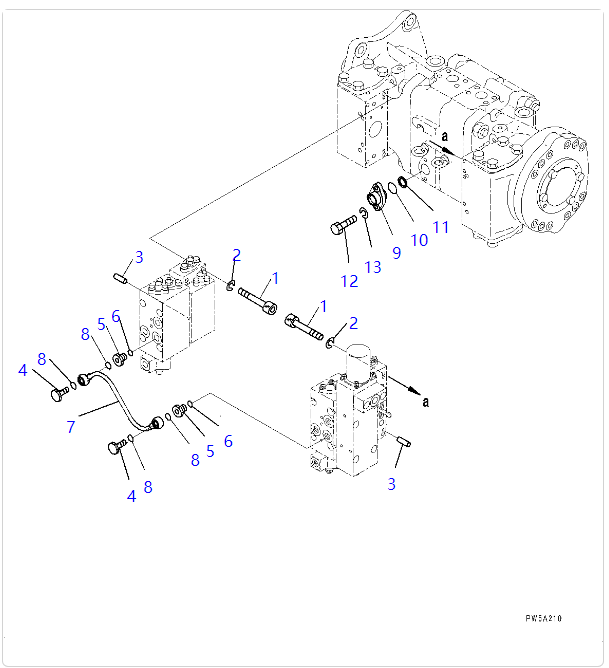

PC1250-8 (9)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85160	[1]	Conjunto de válvula, servo, komatsu delantero	13.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
1.	07000-B2011	[2]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
2.	708-25-19160	[4]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP ']
3.	01602-20825	[4]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP '] Análogos: [ '0160200825 ', '0231011020 ', '6124613790 ']
4.	708-2L-25480	[4]	Filtro Komatsu OEM	0.5 kg.
			[ 'SN: 30158-UP ']
5.	708-2L-25490	[4]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
6.	07000-B1009	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7082L23910 ']
7.	708-25-19230	[2]	Orificio Komatsu China
			[ 'SN: 30158-UP ']
8.	07000-B3048	[1]	Junta tórica Komatsu	0.002 kg.
			[ 'SN: 30158-UP ']
9.	708-25-19240	[1]	Orificio Komatsu China
			[ 'SN: 30158-UP ']

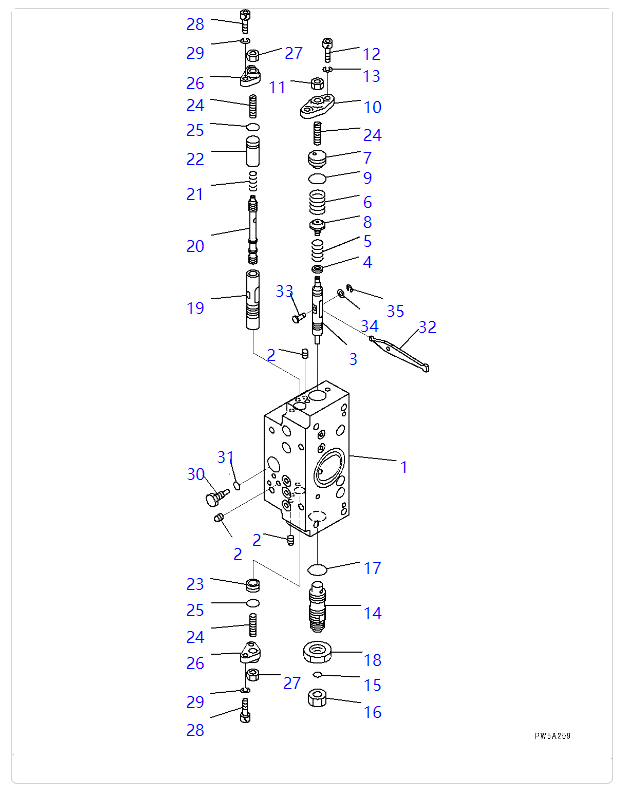

PC1250-8 (10)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85260	[1]	Conjunto de válvula, servo, komatsu trasero	20.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
	708-25-85460	[1]	Subconjunto de válvula, servo, komatsu trasero	6 kg.
			[ 'SN: 30158-UP '] \| $ 3.
	708-25-00840	[1]	Asamblea corporal Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
3.	708-25-15120	[1]	Pistón komatsu	0.055 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	708-25-15130	[1]	Asiento komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-25-55250	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	708-25-25130	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
7.	708-23-15160	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	708-23-15120	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	07000-B2018	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-25-15150	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	01580-10806	[1]	Nuez komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801920104 ']
12.	01252-60616	[2]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230616 ']
13.	01602-20619	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802150506 ']
14.	708-25-55680	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	02896-61009	[1]	Junta tórica Komatsu	0.14 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	02789-00315	[1]	Plug, Cap Komatsu	0.05 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
17.	07002-62034	[1]	Junta tórica Komatsu	0.94 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	07239-12009	[1]	Nuez Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0723902009 ', '0723922009 ']
19.	708-25-15180	[1]	Manga komatsu	0.055 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	708-25-15280	[1]	Buey komatsu	0.03 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-25-15310	[1]	Primavera Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	708-25-15330	[1]	Espaciador Komatsu	0.052 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
23.	708-25-15430	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
24.	708-25-15340	[3]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
25.	07000-B2012	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	708-25-15250	[2]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
30.	708-25-15260	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
31.	07002-60823	[1]	Junta tórica Komatsu	0.18 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
32.	708-25-15270	[1]	Brazo Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
33.	708-25-15360	[1]	Pin Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
34.	708-25-15370	[1]	Lavadora Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
35.	708-25-15380	[1]	Anillo electrónico Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85260	[1]	Conjunto de válvula, servo, komatsu trasero	20.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
	708-25-09681	[1]	Conjunto de válvula, CO+NC Komatsu China
			[ 'SN: 30158-UP '] Análogos: [ '7082509680 '] \| $ 3.
	708-23-00441	[1]	Asamblea corporal Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
3.	708-25-17460	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
4.	708-25-17430	[1]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	07000-B2010	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082L25990 ']
6.	708-25-17131	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082517130 ']
7.	01580-10806	[1]	Nuez komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801920104 ']
8.	708-25-17141	[2]	Buey komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	708-25-17150	[1]	Manga komatsu	0.032 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-25-17160	[1]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	708-25-17170	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
12.	07000-B2014	[1]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	708-25-17180	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	708-25-17690	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	708-25-17220	[1]	Pistón komatsu	0.009 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	708-25-17370	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7082517240 ']
17.	708-25-17250	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
18.	708-25-17470	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
19.	708-23-17290	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	07000-B3028	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	708-25-17380	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
22.	708-25-15340	[1]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
23.	07000-B2021	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
24.	708-23-17240	[1]	Cubrir komatsu	0.046 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
25.	708-25-17480	[1]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	01252-60630	[2]	Bolt, Hexagon Socket Head Komatsu	0.01 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125240630 ']
27.	01602-20619	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802150506 ']
28.	01252-60616	[4]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230616 ']
31.	07000-B2012	[2]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
32.	07001-02012	[2]	Anillo, respaldo komatsu	0.002 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
33.	708-25-17451	[1]	Manga Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
38.	07001-02021	[4]	Anillo, respaldo komatsu	0.061 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']

PC1250-8 (12)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85260	[1]	Conjunto de válvula, servo, komatsu trasero	20.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
	708-25-85760	[1]	Asamblea de válvula Komatsu China
			[ 'SN: 30158-UP '] \| $ 3.
	708-25-00850	[1]	Asamblea del cuerpo Komatsu	0.000 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] \| $ 4.
4.	708-23-18120	[1]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
5.	708-23-18130	[1]	Manga Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
6.	708-27-18240	[3]	Pistón Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
7.	708-27-18250	[3]	Manga Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
8.	07000-B2016	[6]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
9.	07001-02016	[6]	Anillo, respaldo komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
10.	708-23-18161	[1]	Buey komatsu	0.045 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
11.	708-23-18170	[1]	Asiento Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
12.	708-23-18181	[1]	Primavera Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	708-23-15160	[1]	Enchufe Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	708-25-15340	[1]	Atornillar komatsu porcelana
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	07000-B2018	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
16.	708-23-18210	[1]	Cubra a Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
17.	01580-10806	[1]	Nuez komatsu	0.005 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '801920104 ']
18.	708-2L-25190	[1]	Asamblea solenoide Komatsu	0.84 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
20.	708-23-18250	[4]	Perno komatsu	0.02 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
21.	01252-60616	[2]	Bolt, Hexagon Socket Head Komatsu	0.007 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230616 ']
22.	01602-20619	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '802150506 ']
23.	708-2L-25480	[1]	Filtro Komatsu OEM	0.5 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
24.	708-2L-25490	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
25.	708-25-58310	[1]	Brida Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
26.	01252-60830	[2]	Bolt, Hexagon Socket Head Komatsu	0.019 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0125230830 ']
27.	01602-20825	[2]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '0160200825 ', '0231011020 ', '6124613790 ']

PC1250-8 (13)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	708-25-85260	[1]	Conjunto de válvula, servo, komatsu trasero	20.401 kg.
			[ 'SN: 30158-UP '] \| $ 2.
1.	07000-B2011	[3]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
2.	07000-B2018	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
4.	708-25-19160	[4]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP ']
5.	01602-20825	[4]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP '] Análogos: [ '0160200825 ', '0231011020 ', '6124613790 ']
6.	01252-60850	[4]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP '] Análogos: [ '0125270850 ']
8.	708-2L-25480	[2]	Filtro Komatsu OEM	0.5 kg.
			[ 'SN: 30158-UP ']
9.	708-2L-25490	[2]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
10.	07000-B1009	[3]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7082L23910 ']
13.	708-25-19230	[2]	Orificio Komatsu China
			[ 'SN: 30158-UP ']
15.	708-25-19240	[2]	Orificio Komatsu China
			[ 'SN: 30158-UP ']
16.	08193-21012	[1]	Clip komatsu	0.011 kg.
			[ 'SN: 30158-UP ']
17.	01010-80812	[1]	Perno komatsu	0.01 kg.
			[ 'SN: 30158-UP ']
18.	01643-30823	[1]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP '] Análogos: [ '802070008 ', '802150008 ', '0160510818 ', '0164310823 ', '802170001 ', '01643A0823 ']]
19.	07000-B3048	[1]	Junta tórica Komatsu	0.002 kg.
			[ 'SN: 30158-UP ']

PC1250-8 (14)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
1.	01252-60850	[8]	Bolt, encabezado hexágono Komatsu China
			[ 'SN: 30158-UP '] Análogos: [ '0125270850 ']
2.	01602-20825	[8]	Lavadora komatsu	0.004 kg.
			[ 'SN: 30158-UP '] Análogos: [ '0160200825 ', '0231011020 ', '6124613790 ']
3.	04020-00616	[4]	Pin, Dowel Komatsu	0.004 kg.
			[ 'SN: 30158-UP ']
4.	706-46-53180	[2]	Perno komatsu	0.028 kg.
			[ 'SN: 30158-UP ']
5.	706-46-53260	[2]	Enchufe komatsu	0.03 kg.
			[ 'SN: 30158-UP ']
6.	07002-61423	[2]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7082L23950 ']
7.	708-25-19140	[1]	Tubo komatsu	0.15 kg.
			[ 'SN: 30158-UP ']
8.	07000-B2012	[4]	Junta tórica Komatsu China	0.001 kg.
			[ 'SN: 30158-UP ']
9.	708-25-19120	[1]	Brida Komatsu China
			[ 'SN: 30158-UP ']
10.	07000-B2021	[1]	Junta tórica Komatsu	0.001 kg.
			[ 'SN: 30158-UP ']
11.	720-68-15240	[1]	Filtrar komatsu	0.003 kg.
			[ 'SN: 30158-UP ']
12.	01010-80820	[2]	Perno komatsu	0.013 kg.
			[ 'SN: 30158-UP '] Análogos: [ '801014067 ', '010101050820 ', '801015086 ']

PC1250-8 (15)

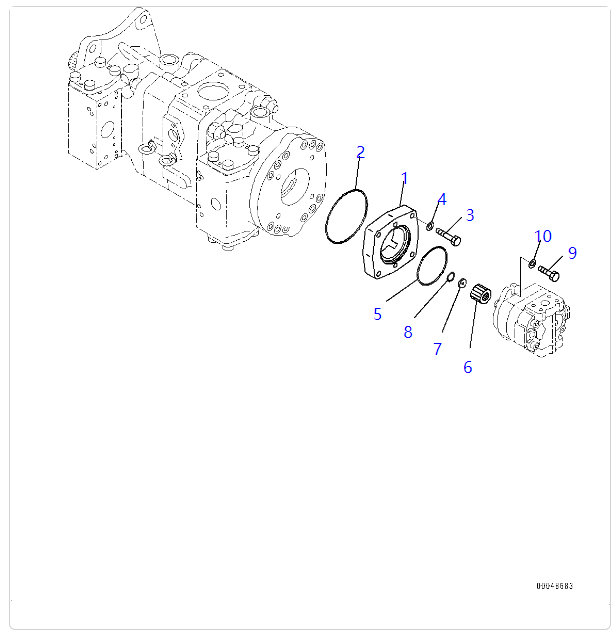

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
1.	708-45-12330	[1]	Cubrir komatsu	2.84 kg.
			[ 'SN: 30158-UP ']
2.	07000-B2120	[1]	Junta tórica Komatsu	0.004 kg.
			[ 'SN: 30158-UP ']
3.	01010-81050	[4]	Perno komatsu	0.038 kg.
			[ 'SN: 30158-UP '] Análogos: [ '801015559 ', '0101051050 ']
4.	01643-31032	[4]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 30158-UP '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '0164331022 ', '0164321032 ', '01643010101032 ', '6127212530 ', '802170002 ', 'R01643331032 ']
5.	07000-B2085	[1]	Junta tórica Komatsu	0.003 kg.
			[ 'SN: 30158-UP ']
6.	708-45-12810	[1]	Jefe Komatsu China
			[ 'SN: 30158-UP ']
7.	708-45-12820	[1]	Collar Komatsu China
			[ 'SN: 30158-UP ']
8.	708-45-12830	[1]	Anillo Komatsu China
			[ 'SN: 30158-UP ']
9.	01010-81030	[2]	Bolt Komatsu OEM	0.03 kg.
			[ 'SN: 30158-UP '] Análogos: [ '801015110 ', 'M0 18011000306 ', 'YM26116100302 ', '0101051030 ']

PC1250-8 (16)

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	708-2L-00681	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30254-UP '] Análogos: [ '7082L00680 '] \| $ 0.
	708-2L-00680	[1]	Conjunto de la bomba komatsu	196 kg.
			[ 'SN: 30158-30253 ', 'SCC: A1 '] Análogos: [ '7082L00681 '] \| $ 1.
	705-11-23040	[1]	Conjunto de la bomba Komatsu China
			[ 'SN: 30158-UP '] \| $ 2.

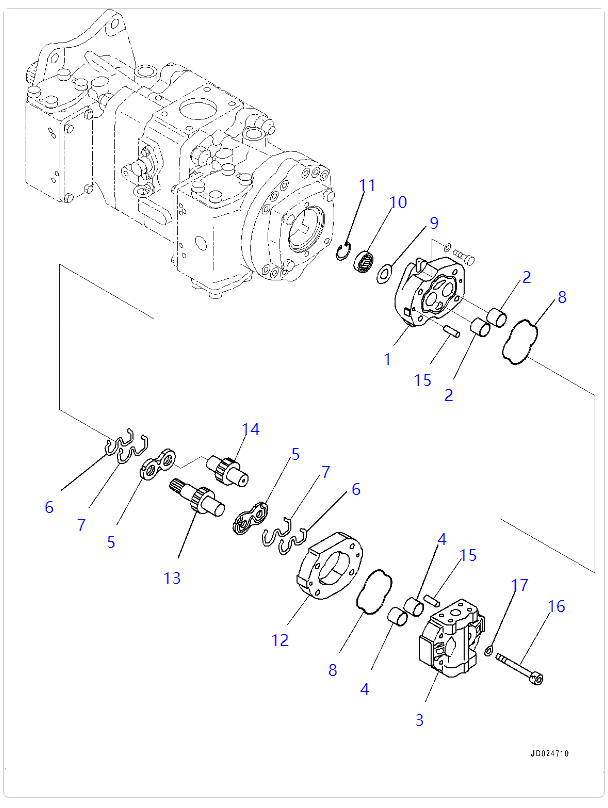

1.	705-17-01010	[1]	Asamblea de soporte Komatsu China
			[ 'SN: 30158-UP ', 'SCC: C2 ']
2.	705-17-01350	[2]	Buje, avión, avión komatsu	0.016 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7051701351 ']
3.	705-17-01120	[1]	Asamblea de cubierta Komatsu	1.025 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 '] Análogos: [ '7051701121 ']
5.	705-17-01610	[2]	Placa, Komatsu lateral	0.16 kg.
			[ 'SN: 30158-UP ']
6.	705-67-01440	[2]	Anillo, respaldo komatsu	0.004 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7051701440 ']
7.	705-67-01470	[2]	Anillo, sello komatsu	0.024 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7051701470 ']
8.	705-67-01380	[2]	Junta tórica Komatsu	0.1 kg.
			[ 'SN: 30158-UP ']
9.	705-17-01870	[1]	Placa Komatsu	0.01 kg.
			[ 'SN: 30158-UP ']
10.	07430-71360	[1]	Sello, aceite komatsu	0.033 kg.
			[ 'SN: 30158-UP ']
11.	04065-03515	[1]	Ring, Snap Komatsu	0.003 kg.
			[ 'SN: 30158-UP ']
12.	705-17-23010	[1]	Estuche, engranaje komatsu	0.67 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
13.	705-17-23410	[1]	Equipo, conducir komatsu	0.39 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
14.	705-17-23510	[1]	Equipo, Komatsu conducido	0.29 kg.
			[ 'SN: 30158-UP ', 'SCC: C2 ']
15.	04020-00820	[4]	Pin, Dowel Komatsu	0.056 kg.
			[ 'SN: 30158-UP '] Análogos: [ '802540092 ']
16.	01252-61280	[4]	Bolt, Hexagon Socket Head Komatsu	0.088 kg.
			[ 'SN: 30158-UP '] Análogos: [ '7051702730 ']
17.	01643-51232	[4]	Lavadora komatsu	0.024 kg.
			[ 'SN: 30158-UP ']
