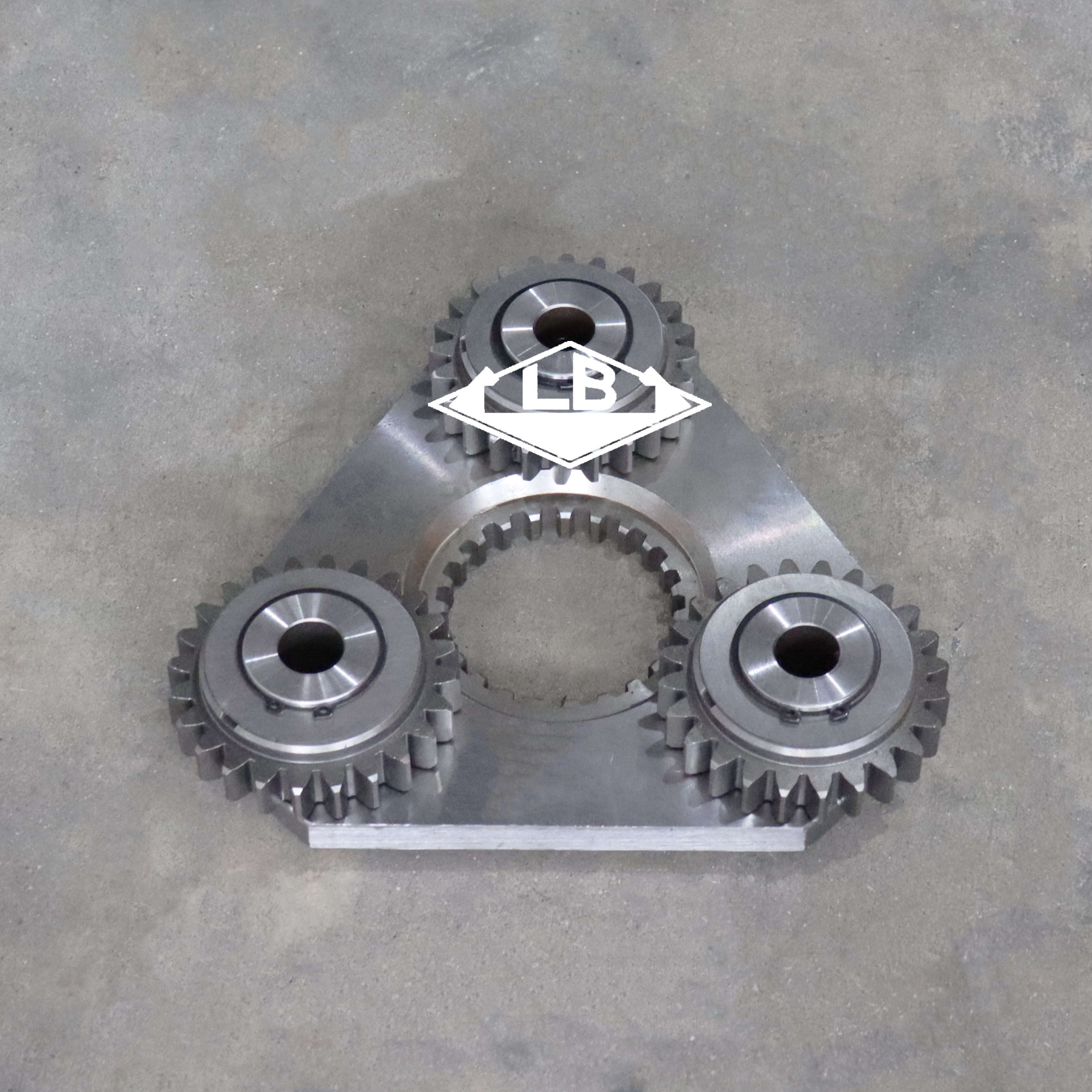

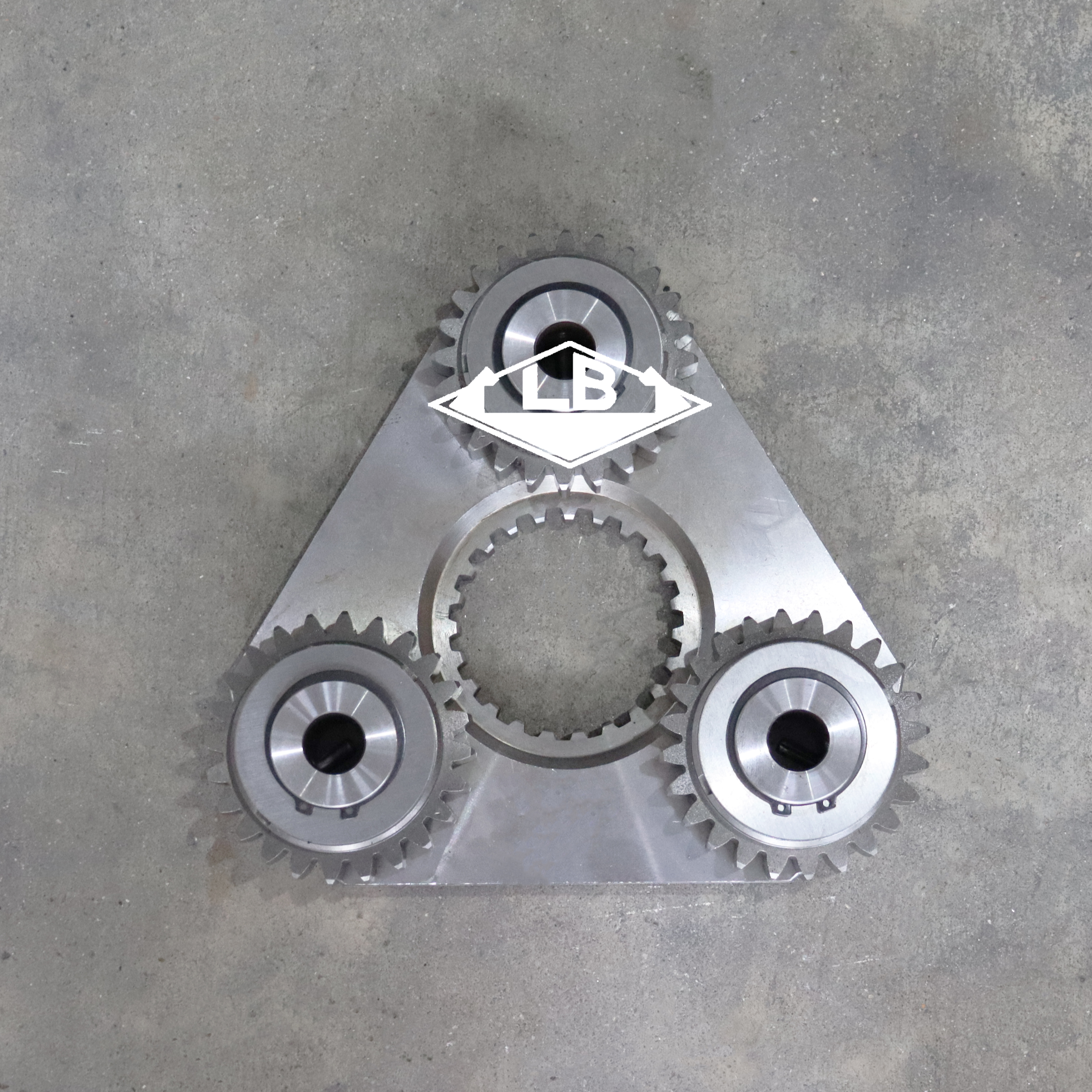

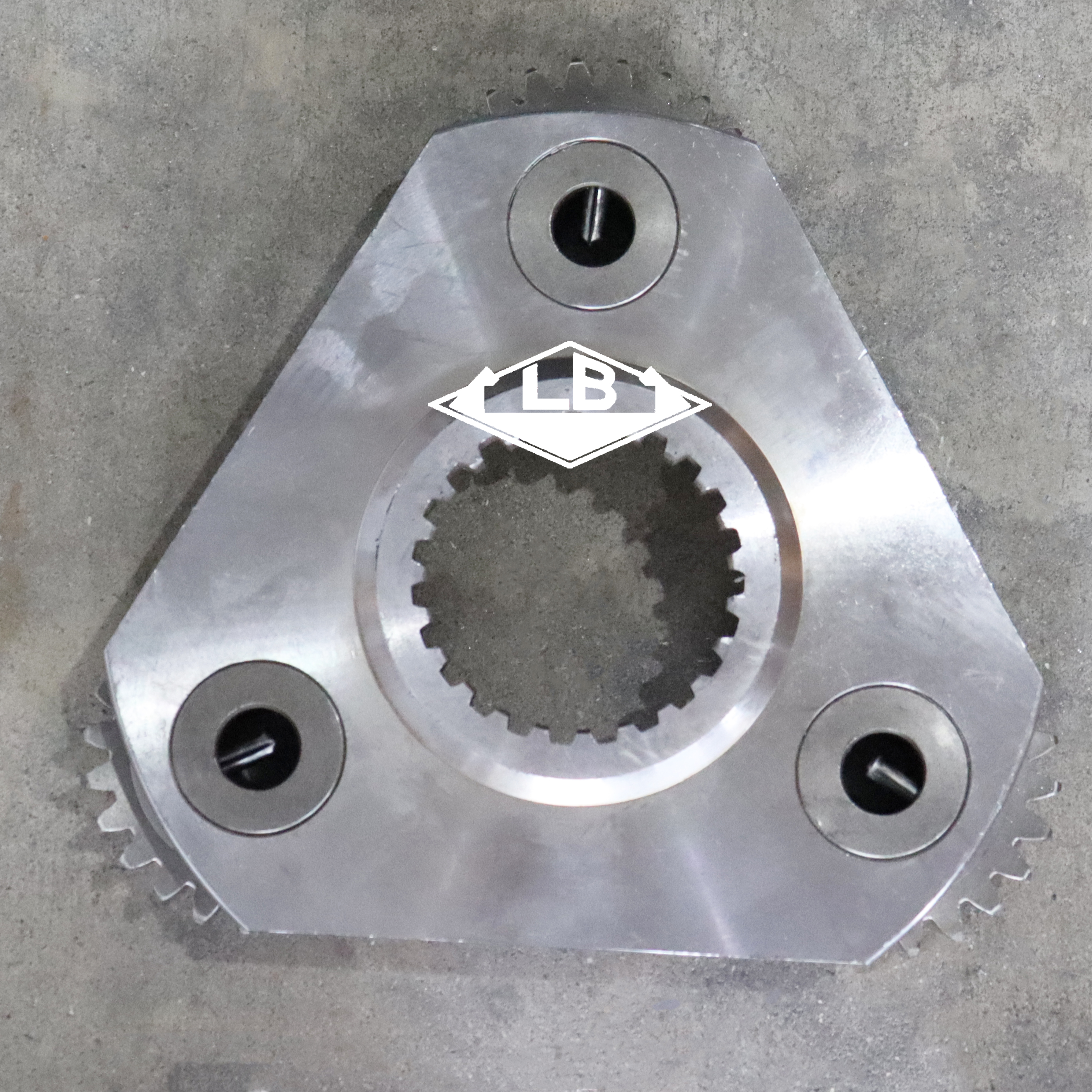

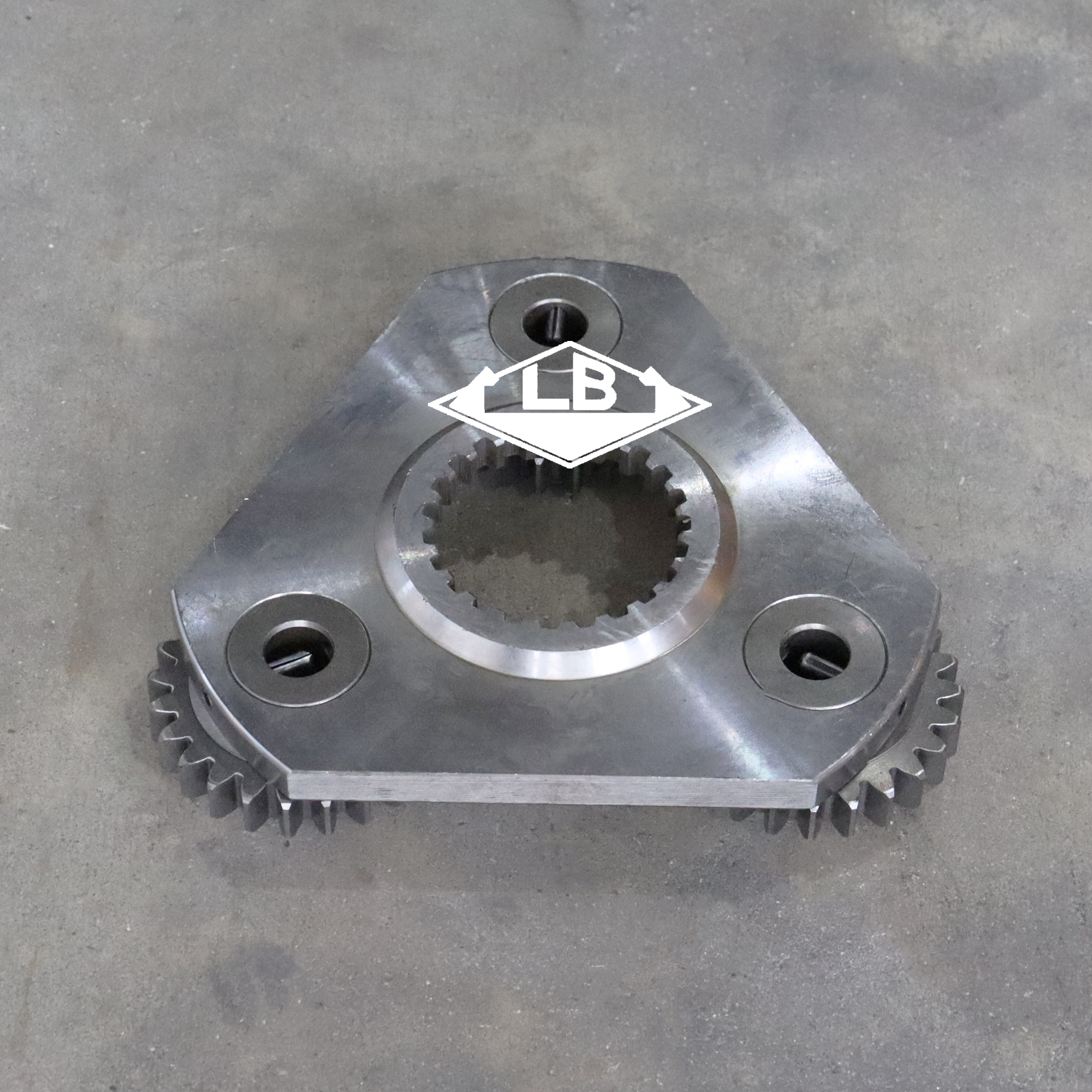

DX340 1er Carrier Assy 1.230-00012 Piezas de la caja de cambios de viaje Se aplica para Doosan Excavator

Disponibilidad:

Cantidad:



Consultar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	Caja de cambios dx340 swing
Equipo	Aplicar a Doosan Excavator
Parte no.	1.230-00012
No.1 dientes de spline de engranaje solar	18 splines
Dientes del eje del piñón oscilante	13 T
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

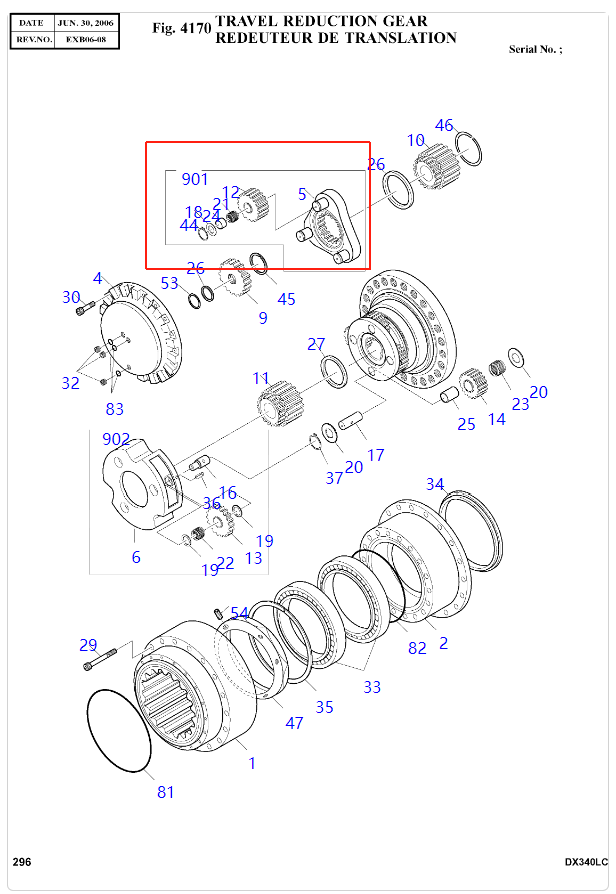

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita
-.	K1003134	[2]	Equipo de reducción de viajes Komatsu China
			[ 'Desc: Boite Reduceur ']
1.	104-00035	[1]	Equipo; anillo komatsu china
			[ 'Desc: Couronne Dentee ']
2.	1.402-00129	[1]	Viviando Komatsu China
			[ 'Desc: Boitier ']
4.	1.430-00216	[1]	Cubierta; lado Komatsu China
			[ 'Desc: Couvercle ']
5.	1.230-00009	[1]	Carrier No.1 Komatsu China
			[ 'Desc: Porte-Satellites n1 ']
6.	1.230-00015	[1]	Portador No.2 Komatsu China
			[ 'Desc: Porte-Satellites n2 ']
9.	404-00080	[1]	Equipo; Sol No.1 Komatsu China
			[ 'Desc: Pignon principal ']
10.	404-00081	[1]	Equipo; sol n. ° 2 Komatsu China
			[ 'Desc: Pignon principal ']
11.	404-00082	[1]	Equipo; sol n. ° 3 Komatsu China
			[ 'Desc: Pignon ']
12.	1.403-00061	[3]	Gear; Planetary No.1 Komatsu China
			[ 'Desc: Pignon ']
13.	1.403-00065	[3]	Gear; Planetary No.2 Komatsu China
			[ 'Desc: Pignon ']
14.	104-00036	[4]	Gear; Planetary No.3 Komatsu China
			[ 'Desc: Pignon ']
16.	K9002264	[3]	Pin No.2 Komatsu China
			[ 'Desc: Goupille ']
17.	123-00285	[4]	Pin No.3 Komatsu China
			[ 'Desc: Bruche ']
18.	1.412-00121	[3]	Placa; lado E Komatsu China
			[ 'Desc: placa ']
19.	1.412-00117	[6]	Placa; lado A Komatsu China
			[ 'Desc: placa ']
20.	412-00038	[8]	Placa; lado F Komatsu China
			[ 'Desc: placa ']
21.	1.216-00017	[3]	Jaula; aguja komatsu china
			[ 'Desc: Roulement a Aiguilles ']
22.	1.216-00015	[3]	Jaula; aguja komatsu china
			[ 'Desc: Roulement a Aiguilles ']
23.	1.216-00018	[4]	Jaula; aguja komatsu china
			[ 'Desc: Roulement a Aiguilles ']
24.	1.115-00232	[3]	Anillo; china interna komatsu
			[ 'Desc: Bague d'Arret ']
25.	110-00126	[4]	Bush; China flotante de Komatsu
			[ 'Desc: Bague ']
26.	114-00347	[2]	Anillo; empuje 60 Komatsu China
			[ 'Desc: Anneau de Blocage ']
27.	114-00348	[1]	Anillo; empuje 90 Komatsu China
			[ 'Desc: Anneau de Blocage ']
29.	S2222671	[28]	Perno; enchufe M16x100 Komatsu China
			[ 'Desc: Boulon A 6 PANS Creux ']
30.	S2208871	[12]	Bolt; Socket M8X20 Komatsu China
			[ 'Desc: Boulon A 6 PANS ']
32.	2181-1890d4	[3]	Enchufe Komatsu China
			[ 'Desc: Bouchon ']
33.	109-00145	[2]	Rodamiento; angular komatsu China
			[ 'Desc: Palier ']
34.	180-00345	[1]	Sello; China de Komatsu flotante
			[ 'Desc: unión una cara frottante ']
35.	1.114-00054	[1]	CHIM 1.0 Komatsu China
			[ 'Desc: Cale 1.0 ']
36.	1.123-00081	[3]	Pin; Spring Komatsu China
			[ 'Desc: Goupille Elastique ']
37.	S6510420	[4]	Anillo; Snap Komatsu China
			[ 'Desc: Rond-Type C ']
44.	S6500450	[3]	Anillo; Snap Komatsu China
			[ 'Desc: Bague d'Arret ']
45.	124-00150	[1]	Clip Komatsu China
			[ 'Desc: Bague d'Arret ']
46.	124-00151	[1]	Clip Komatsu China
			[ 'Desc: Bague d'Arret ']
47.	1.115-00248	[1]	Nuez; anillo Komatsu China
			[ 'Desc: Bague-Ecrou ']
53.	1.114-00306	[1]	Arandela 1.0t Komatsu China
			[ 'Desc: Rondelle ']
53.	K9002676	[1]	Arandela 1.5t Komatsu China
			[ 'Desc: Rondelle ']
54.	2.121-00226	[6]	Tornillo; coloque Komatsu China
			[ 'Desc: Vis de Reglage ']
81.	1.180-00162	[1]	Junta tórica Komatsu China
			[ 'DESC: Junta Torique ']
82.	1.180-00163	[1]	Junta tórica Komatsu China
			[ 'DESC: Junta Torique ']
83.	S8000181	[3]	Junta tórica Komatsu China
			[ 'DESC: Junta Torique ']
901.	1.230-00012	[1]	Portador No.1 Sub Ass'y Komatsu China
			[ 'Desc: Porte-Satellites n1 ']
902.	1.230-00018	[1]	Portador No.2 Sub Ass'y Komatsu China
			[ 'Desc: Porte-Satellites n2 ']
