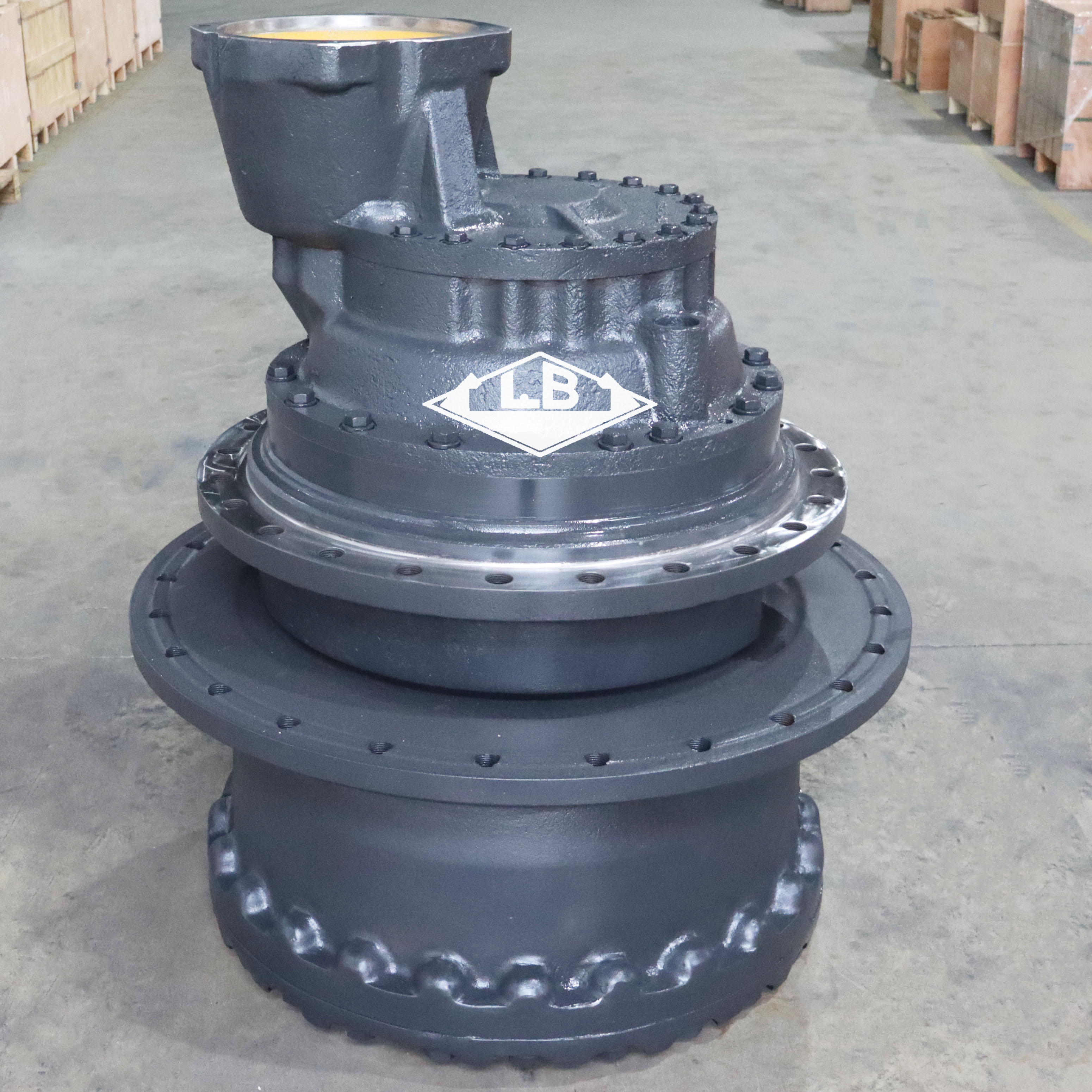

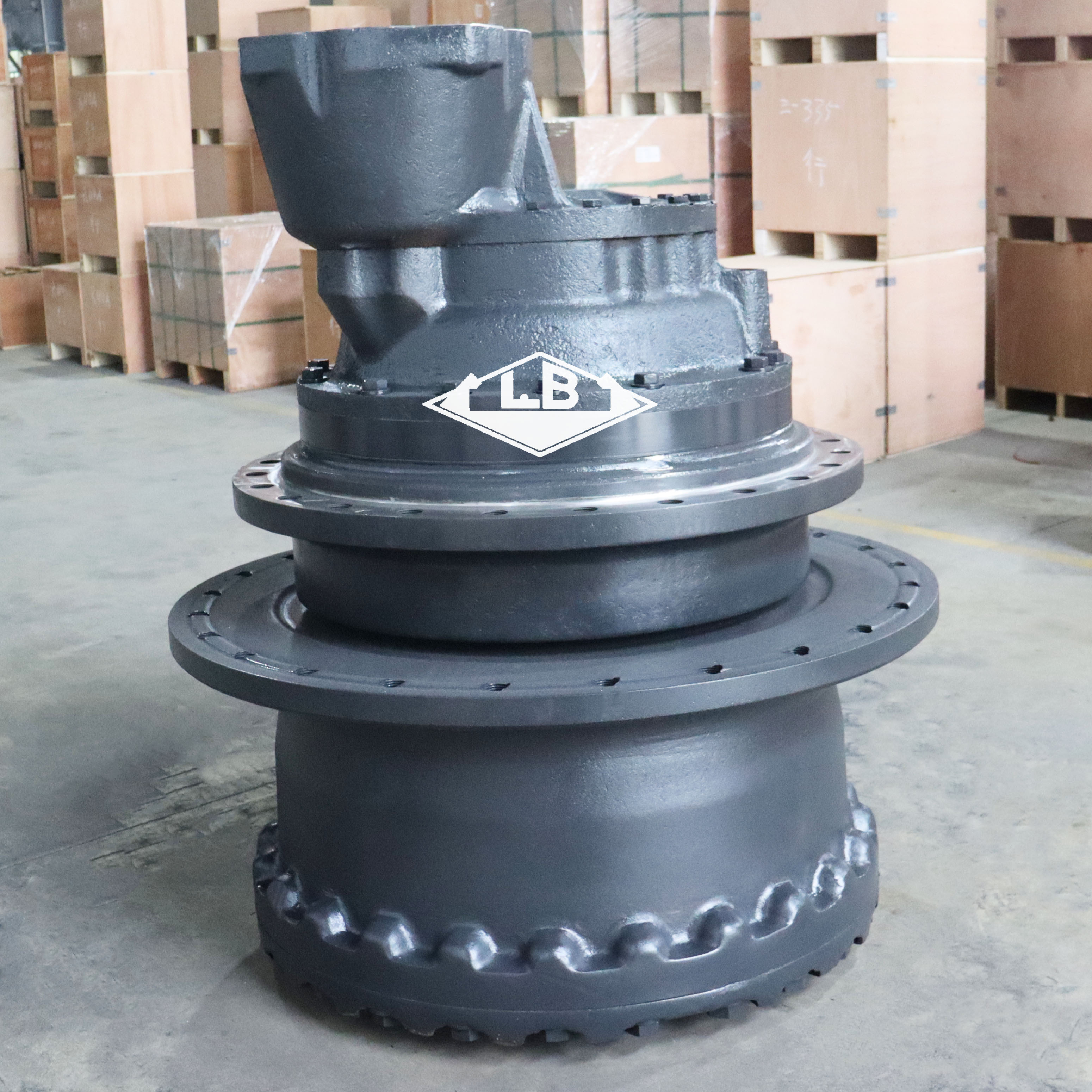

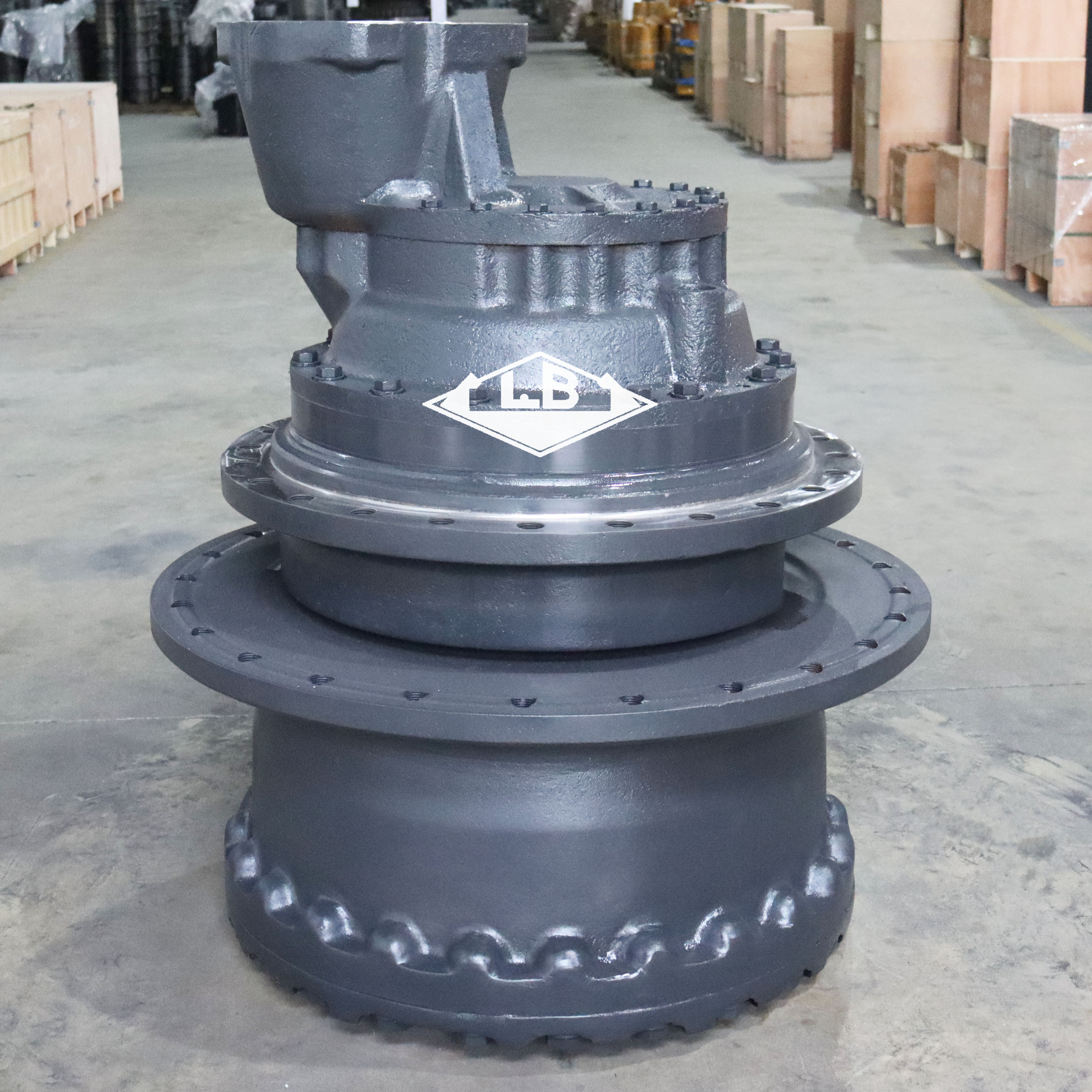

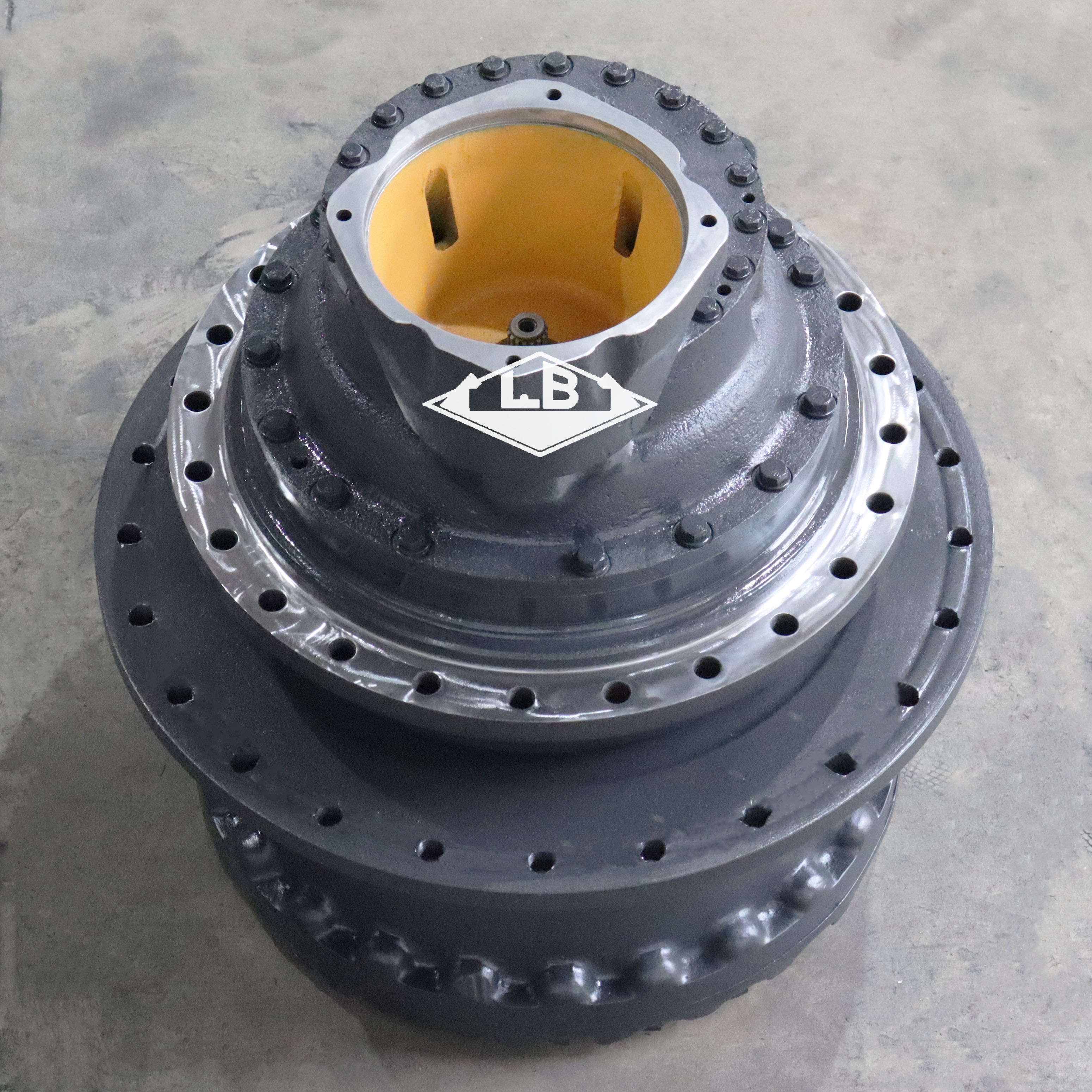

PC2000-8 Drive final 21T-27-00410 706-7L-01110 21T-27-00300 Caja de cambios de viaje para Komatsu PC2000LC-8

Disponibilidad:

Cantidad:



Consultar Añadir al carrito

Descripción del Producto

Parámetros del producto

P Nombre de arte	Caja de cambios de viaje PC2000-8
Equipo	Aplicar a la excavadora de Komatsu
Parte no.	21T-27-00410 706-7L-01110 21T-27-00300
Agujeros de marco	-
Agujeros	-
Condición de artículo	Nuevo
Logo	Lb
Peso bruto	-
Moq	1 PC

Descripción del Producto

PC2000 行走牙箱 (6) PC2000 行走牙箱 (4) PC2000 行走牙箱 (8) PC2000 行走牙箱 (2) PC2000 (1)

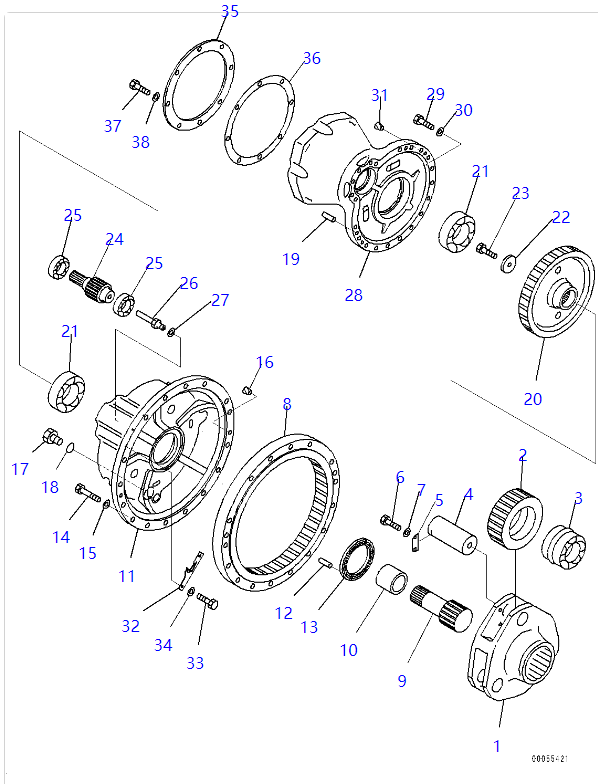

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	21T-27-00300	[1]	Asamblea de la unidad final Komatsu	3060 kg.
			[ 'Sn: 20196-up '] \| $ 0.
1.	21T-27-71142	[1]	Alojamiento Komatsu	469 kg.
			[ 'SN: 20196-UP ']
2.	21T-27-71421	[1]	Retenedor komatsu	16 kg.
			[ 'SN: 20196-UP ']
2.	198-27-00034	[1]	Conjunto de sello flotante Komatsu	10.5 kg.
			[ 'SN: 20196-UP '] Análogos: [ '1982700031 ', '1982700033 ', '1982700032 ']
5.	21T-27-11330	[1]	Komatsu con Komatsu	70 kg.
			[ 'Sn: 20196-up '] Análogos: [ '5682212940 ', '56122262970 ', '5612262990 ']
6.	21T-27-71151	[1]	Caso Komatsu	767 kg.
			[ 'SN: 20196-UP ']
8.	21T-27-71311	[1]	Engranaje komatsu	134 kg.
			[ 'SN: 20196-UP ']
9.	209-27-21270	[6]	Lock Komatsu China
			[ 'SN: 20196-UP ']
10.	01010-81230	[12]	Perno komatsu	0.043 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101051230 ', '01010b1230 ']
11.	01643-31232	[12]	Lavadora komatsu	0.027 kg.
			[ 'Sn: 20196-up '] Análogos: [ '0164371232 ', '0164381232 ', '802170003 ', 'R0164331232 ', '0614331232 ']]
12.	21T-27-71321	[1]	Viviando Komatsu China
			[ 'SN: 20196-UP ']
13.	21T-27-00070	[1]	Shim Komatsu	1.46 kg.
			[ 'SN: 20196-UP ']
14.	21T-27-71330	[1]	Retenedor komatsu	21.55 kg.
			[ 'SN: 20196-UP ']
15.	01010-82465	[10]	Perno komatsu	0.341 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101062465 ', '0101032465 ', '0101052465 ']
16.	21T-27-71280	[1]	Eje komatsu	82 kg.
			[ 'SN: 20196-UP ']
17.	21T-27-71164	[1]	Transportista komatsu	292 kg.
			[ 'SN: 20196-UP ']
18.	205-27-71360	[1]	Botón komatsu	0.125 kg.
			[ 'SN: 20196-UP ']
19.	21T-27-71290	[4]	Engranaje komatsu	29 kg.
			[ 'SN: 20196-UP ']
20.	21T-27-71390	[4]	Con Komatsu China
			[ 'SN: 20196-UP ']
21.	198-27-11420	[8]	Lavadora, empuje komatsu	0.875 kg.
			[ 'SN: 20196-UP ']
22.	21T-27-71440	[4]	Pin Komatsu China
			[ 'SN: 20196-UP ']
23.	04082-00616	[4]	Bloquear komatsu	0.88 kg.
			[ 'SN: 20196-UP ']
24.	01010-81640	[8]	Perno komatsu	0.264 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101061640 ', '801015186 ', '0101031640 ', '0101051640 ']
25.	01643-31645	[8]	Lavadora komatsu	0.072 kg.
			[ 'Sn: 20196-up '] Análogos: [ '802170005 ', '0164301645 ']
26.	01010-83080	[24]	Perno komatsu	0.673 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101063080 ']
27.	01643-33080	[24]	Lavadora Komatsu China	0.132 kg.
			[ 'SN: 20196-UP ']
28.	07049-03038	[2]	Plug, Cork Komatsu	0.214 kg.
			[ 'SN: 20196-UP ']
29.	07040-11007	[1]	Enchufe komatsu	0.014 kg.
			[ 'SN: 20196-UP ']
30.	07002-11023	[1]	Junta tórica Komatsu China	0.025 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0700201023 ']
31.	07044-13620	[2]	Enchufe komatsu	0.496 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0704403620 ']
32.	07002-13634	[2]	Junta tórica Komatsu China	0.013 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0700203634 ']
33.	21T-27-71175	[1]	Sprocket komatsu	269.4 kg.
			[ 'SN: 20196-UP '] Análogos: [ '21T2771173 ', '21T2771174 ']
34.	21T-27-11890	[25]	Perno komatsu	1.2 kg.
			[ 'SN: 20196-UP ']
35.	01643-33380	[25]	Lavadora komatsu	0.166 kg.
			[ 'SN: 20196-UP ']

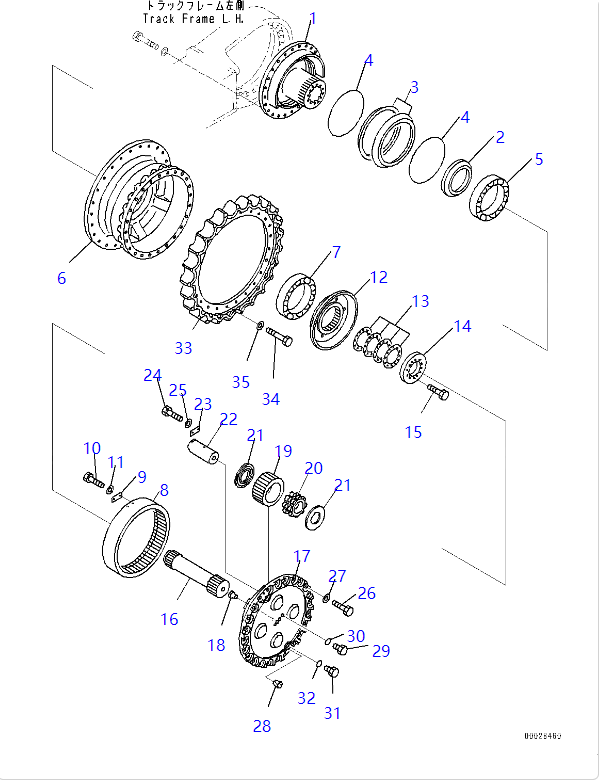

Piezas en el grupo:

Pos.	Parte no hay	un	nombre de piezas de cita	comentarios
	21T-27-00300	[1]	Asamblea de la unidad final Komatsu	3060 kg.
			[ 'Sn: 20196-up '] \| $ 0.
1.	21T-27-71270	[1]	Transportista komatsu	65 kg.
			[ 'SN: 20196-UP ']
2.	21T-27-71250	[3]	Engranaje komatsu	16 kg.
			[ 'SN: 20196-UP ']
3.	21T-27-71380	[3]	Komatsu con Komatsu	6.9 kg.
			[ 'SN: 20196-UP ']
4.	21T-27-71430	[3]	Pin Komatsu	4.767 kg.
			[ 'SN: 20196-UP ']
5.	209-27-51450	[3]	Lock Komatsu China
			[ 'SN: 20196-UP ']
6.	01010-81230	[6]	Perno komatsu	0.043 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101051230 ', '01010b1230 ']
7.	01643-31232	[6]	Lavadora komatsu	0.027 kg.
			[ 'Sn: 20196-up '] Análogos: [ '0164371232 ', '0164381232 ', '802170003 ', 'R0164331232 ', '0614331232 ']]
8.	21T-27-72260	[1]	Engranaje komatsu	127.8 kg.
			[ 'SN: 20196-UP ']
9.	21T-27-71241	[1]	Eje komatsu	10.9 kg.
			[ 'SN: 20196-UP ']
10.	21T-27-71230	[1]	Espaciador Komatsu	2.5 kg.
			[ 'SN: 20196-UP ']
11.	21T-27-72130	[1]	Caso Komatsu China
			[ 'SN: 20196-UP ']
12.	04020-00616	[1]	Pin, Dowel Komatsu	0.004 kg.
			[ 'SN: 20196-UP ']
13.	21T-27-11540	[1]	Lavadora komatsu	1.6 kg.
			[ 'SN: 20196-UP ']
14.	01011-82015	[16]	Perno komatsu	0.346 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101183015 ', '0101162015 ', '0101152015 ', '0104142015 ', '0101163015 ']]
15.	01643-32060	[16]	Lavadora Komatsu China	0.044 kg.
			[ 'Sn: 20196-up '] Análogos: [ '802170007 ', '0164322045 ', '0164302045 ']
16.	07049-02025	[2]	Enchufe komatsu	0.002 kg.
			[ 'SN: 20196-UP ']
17.	07044-13620	[1]	Enchufe komatsu	0.496 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0704403620 ']
18.	07002-13634	[1]	Junta tórica Komatsu China	0.013 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0700203634 ']
19.	04020-01638	[2]	Pin, Dowel Komatsu	0.064 kg.
			[ 'SN: 20196-UP ']
20.	21T-27-72210	[1]	Engranaje komatsu	38.1 kg.
			[ 'SN: 20196-UP ']
21.	06044-00221	[2]	Komatsu con Komatsu	4.62 kg.
			[ 'SN: 20196-UP ']
22.	21T-27-71220	[1]	Titular Komatsu	0.43 kg.
			[ 'SN: 20196-UP ']
23.	01010-81650	[1]	Bolt Komatsu China	0.113 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101061650 ', '0101051650 ', '0101031650 ']
24.	21T-27-72190	[1]	Eje komatsu	4.3 kg.
			[ 'SN: 20196-UP ']
25.	21T-27-72180	[2]	Komatsu con Komatsu	1.7 kg.
			[ 'SN: 20196-UP ']
26.	209-27-51470	[1]	Pezón Komatsu China
			[ 'SN: 20196-UP ']
27.	01643-31032	[1]	Lavadora komatsu	0.054 kg.
			[ 'Sn: 20196-up '] Análogos: [ '802150510 ', '01643331030 ', '0164381032 ', '0164371032 ', '01643331022 ', '0164321032 ', '01643010101032 ', '6127212530 ', '802170002 ', 'R01643331032 ']
28.	21T-27-72120	[1]	Caso Komatsu China
			[ 'SN: 20196-UP ']
29.	01010-81665	[21]	Perno komatsu	0.134 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101051665 ', '0101031665 ', '0101061665 ', 'R0101081665 ']
30.	01643-31645	[21]	Lavadora komatsu	0.072 kg.
			[ 'Sn: 20196-up '] Análogos: [ '802170005 ', '0164301645 ']
31.	07049-01620	[2]	Enchufe komatsu	0.002 kg.
			[ 'SN: 20196-UP ']
32.	21T-27-72530	[1]	Placa Komatsu China
			[ 'SN: 20196-UP ']
33.	01010-81025	[2]	Perno komatsu	0.36 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101051025 ', '0101651025 ', '801015109 ']
35.	21n-27-31320	[1]	Cubra a Komatsu China
			[ 'SN: 20196-UP ']
36.	21n-27-31330	[1]	Junta Komatsu	0.5 kg.
			[ 'SN: 20196-UP ']
37.	01010-81845	[4]	Perno komatsu	0.14 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0101061845 ', '0101031845 ', '0101051845 ', 'R0101081845 ']
38.	01643-31845	[4]	Lavadora Komatsu China	0.02 kg.
			[ 'SN: 20196-UP '] Análogos: [ '0164321845 ', 'R01643331845 ']
